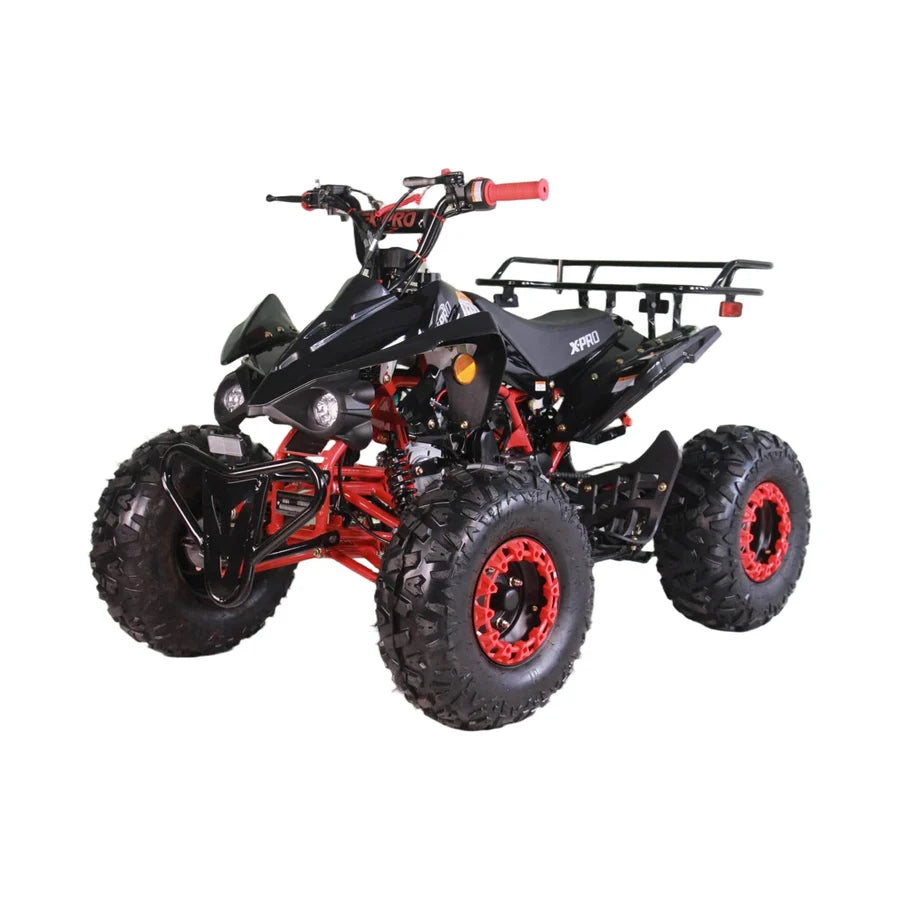

X-PRO Blast 125cc ATV with Automatic Transmission w/Reverse, LED Headlights, Big 19in/18in Tires!
X-PRO Blast 125cc ATV – Automatic Power with Reverse
The X-PRO Blast 125cc ATV is a powerful and easy-to-operate gas ATV designed for recreational off-road riding, rural property use, and light trail riding. Its fully automatic transmission with reverse makes operation simple. No manual clutch or gear shifting required.

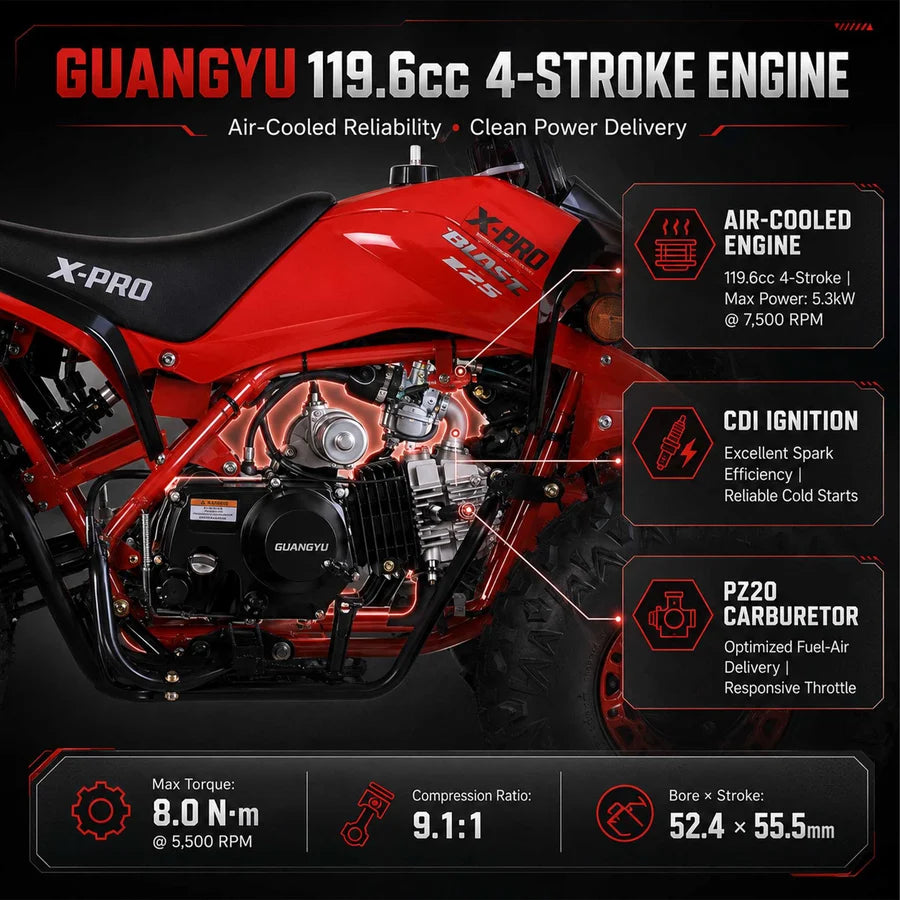

Powered by a 119.6cc Guangyu 4-stroke engine, the Blast 125 produces 5.3 kW of maximum power and can reach speeds of 35+ mph, depending on rider weight, terrain, and riding conditions.
Large 19-inch front and 18-inch rear tubeless tires provide added traction and ground clearance for dirt, grass, gravel, and light trails. The dual A-arm front suspension helps provide a smoother and more controlled ride over uneven terrain.
Key Features:
- 119.6cc Guangyu 4-Stroke Engine
- Fully Automatic Transmission with Reverse

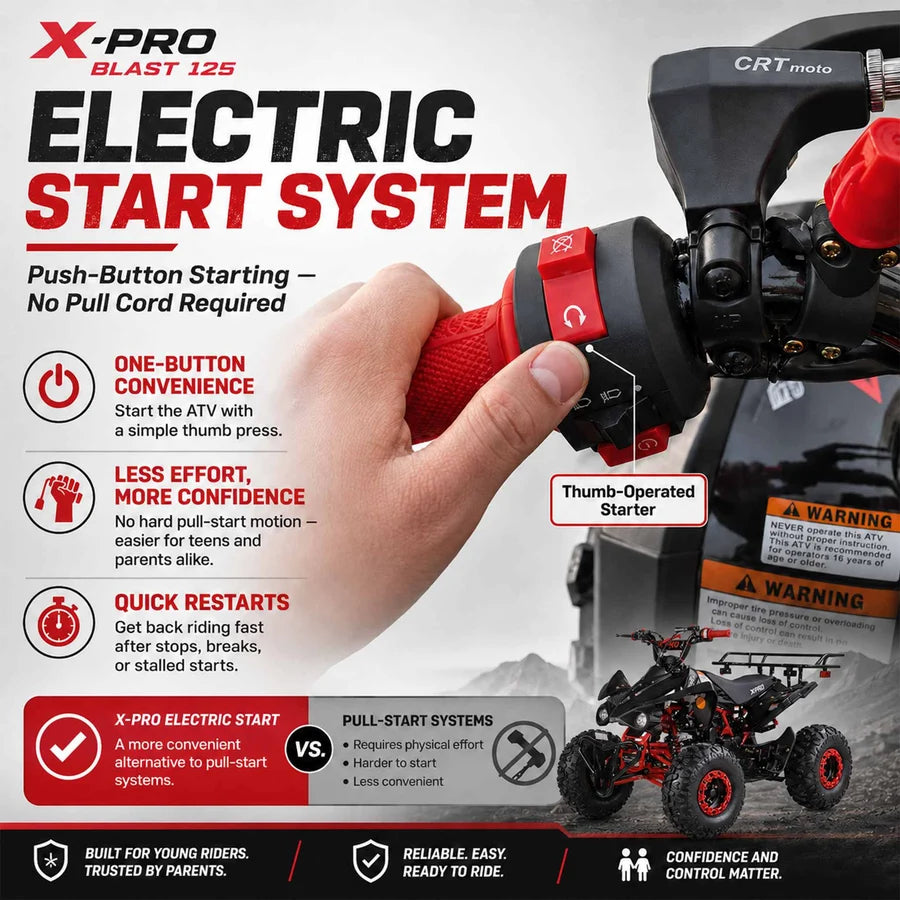

- Electric Start

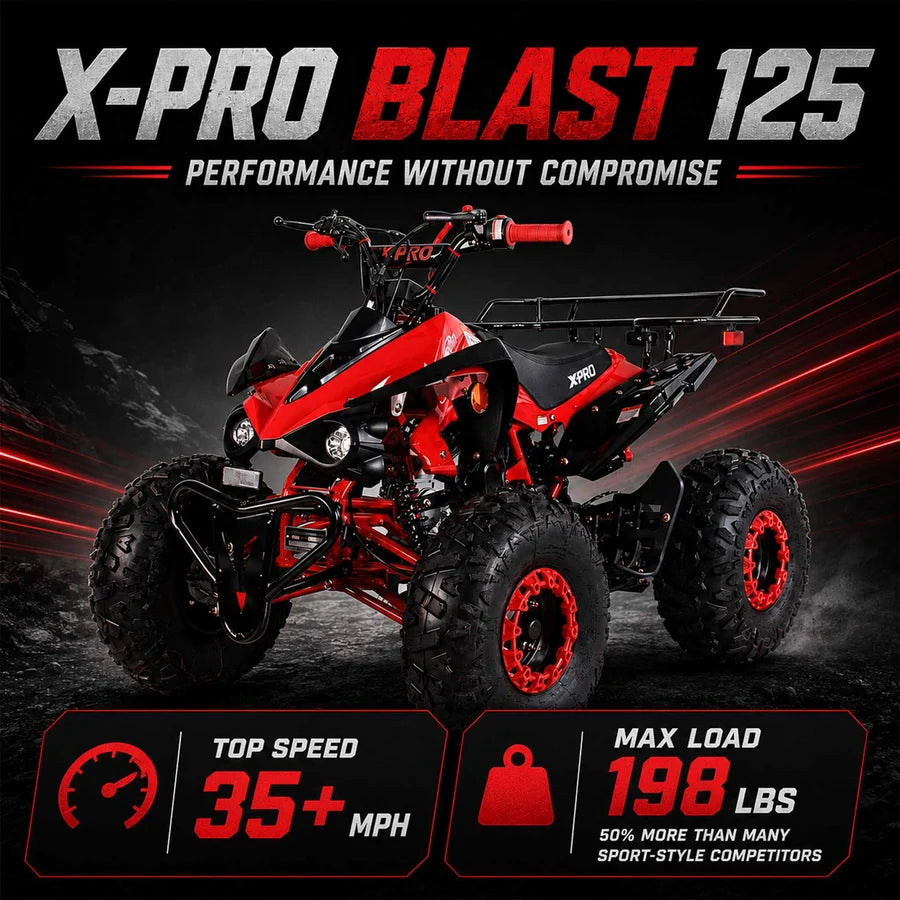

- 35+ MPH Top Speed depending on rider and terrain

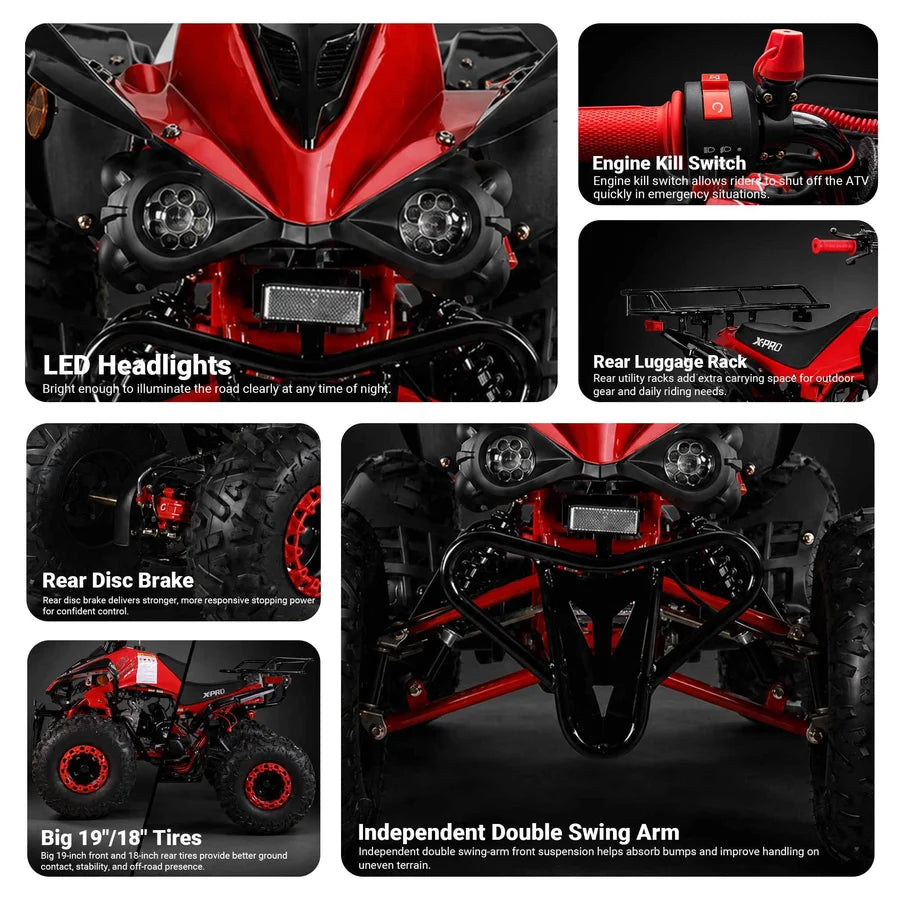

- LED Headlight
- LED Tail/Brake Light
- 19” Front / 18” Rear Tubeless Tires
- Dual A-Arm Front Suspension
- Rear Hydraulic Disc Brake
- Front Drum Brake
- Wireless Remote Kill Switch
- Handlebar Engine Kill Switch
- Adjustable Speed Limiter
- Chain Final Drive
- 2-Liter Fuel Tank
- 198 lb Maximum Load Capacity
- EPA Certified
Rider Fit Guide
|
Specification |
Recommendation |
|
Recommended Age |
12+ |
|
Recommended Height |
Approximately 4’10”–6’0” |
|
Maximum Rider Weight |
Under 198 lbs |
|
Transmission |
Automatic with Reverse |
|
Intended Use |
Off-Road Recreation |
Rider fit recommendations are for reference only. Actual fit may vary based on rider inseam, footwear, riding position, and suspension setup. Adult supervision is required.
Technical Specifications
|
Category |
Specification |
|
Engine Brand |
Guangyu |
|
Engine Displacement |
119.6cc |
|
Engine Type |
Single-Cylinder, 4-Stroke |
|
Cooling |
Air-Cooled |
|
Compression Ratio |
9.1:1 |
|
Bore x Stroke |
52.4mm × 55.5mm |
|
Max Power |
5.3 kW @ 7,500 RPM |
|
Max Torque |
8.0 N·m @ 5,500 RPM |
|
Transmission |
Automatic with Reverse |
|
Clutch |
Centrifugal |
|
Starting System |
Electric Start |
|
Ignition |
CDI |
|
Fuel System |
Carburetor |
|
Carburetor |
PZ20 |
|
Final Drive |
Chain |
|
Fuel Type |
Gasoline, 87 Octane |
|
Fuel Tank |
2 L |
|
Top Speed |
35+ MPH |
|
Front Brakes |
Drum |
|
Rear Brakes |
Hydraulic Disc |
|
Front Suspension |
Dual A-Arm |
|
Rear Suspension |
Single |
|
Front Tires |
19 × 7-8 Tubeless |
|
Rear Tires |
18 × 9.5-8 Tubeless |
|
Wheel Material |
Steel Rims with Trim Covers |
|
Frame |
Steel |
|

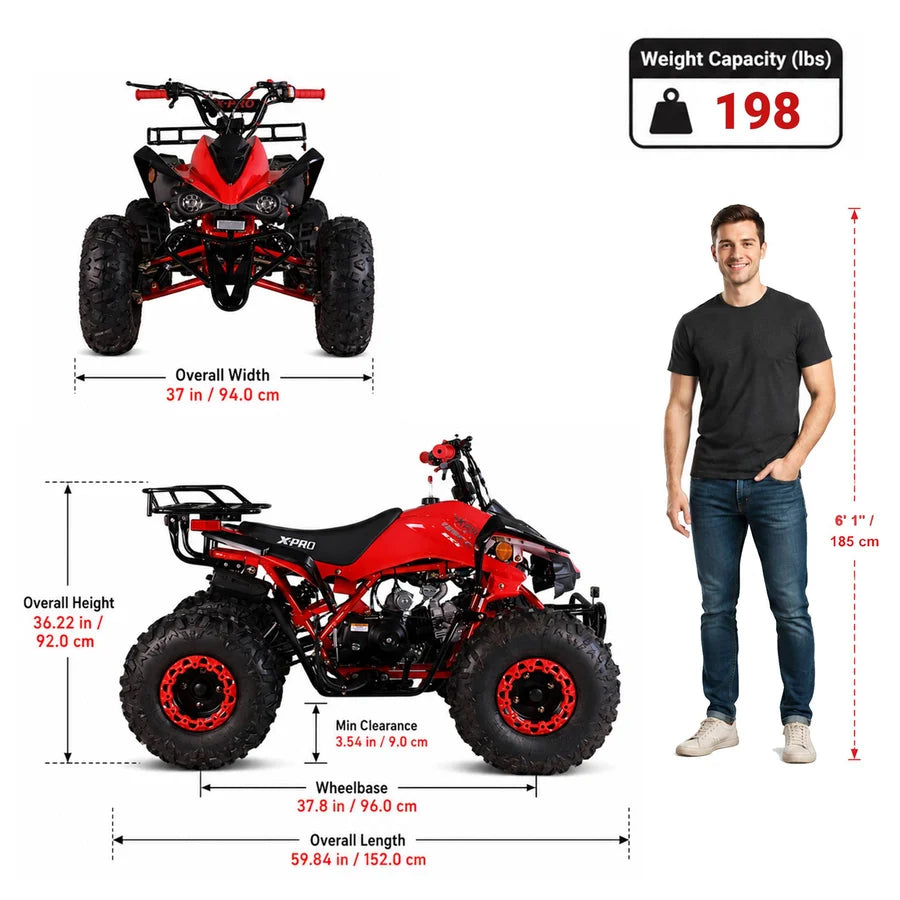

Seat Height |
27.5” |
|
Ground Clearance |
3.54” |
|
Wheelbase |
37.8” |
|
Overall Length |
59.84” |
|
Overall Width |
37” |
|
Overall Height |
36.22” |
|
Net Weight |
229 lbs |
|
Shipping Weight |
232 lbs |
|
Maximum Load |
198 lbs |
|
Headlight |
LED |
|
Tail Light |
Yes |
|
Remote Kill Switch |
Yes |
|
Speed Limiter |
Yes |
|
EPA Certified |
Yes |
Safety & Intended Use
OFF-ROAD USE ONLY: The X-PRO Blast 125cc ATV is designed for off-road use and cannot be registered or operated on public roads in the United States.
NOT FOR SALE IN CALIFORNIA — this model does not meet California CARB emission standards.
The maximum load capacity is 198 lbs. Always wear appropriate protective equipment and operate the ATV according to the owner’s manual and applicable safety requirements.
Assembly & Setup
The Blast 125 arrives approximately 85% assembled. Some final assembly is required before riding.
Assembly includes:
- Front wheels
- Rear wheels
- Handlebar clamp
- Front bumper
- Rear rack
- Front shocks
- Rear shock
- Battery connection
Battery connection: Connect the red (+) terminal first, followed by the black (-) terminal.
Professional assembly is recommended if you are not familiar with ATV assembly and mechanical components.
What’s Included:
- X-PRO Blast 125 ATV
- Front Wheels (2)
- Rear Wheels (2)
- Handlebar Clamp
- Front Bumper
- Rear Rack
- Front Shocks (2)
- Rear Shock
- 12V/5Ah Battery
- Tool Kit
- Owner’s Manual
Helmet not included.
Warranty
The X-PRO Blast 125 is covered by a limited manufacturer’s warranty:
- Frame: 1 Year
- Parts: 90 Days
- Battery: 90 Days
Warranty coverage applies to qualifying manufacturing defects. Normal wear items, accidents, misuse, unauthorized modifications, and other exclusions are not covered.
