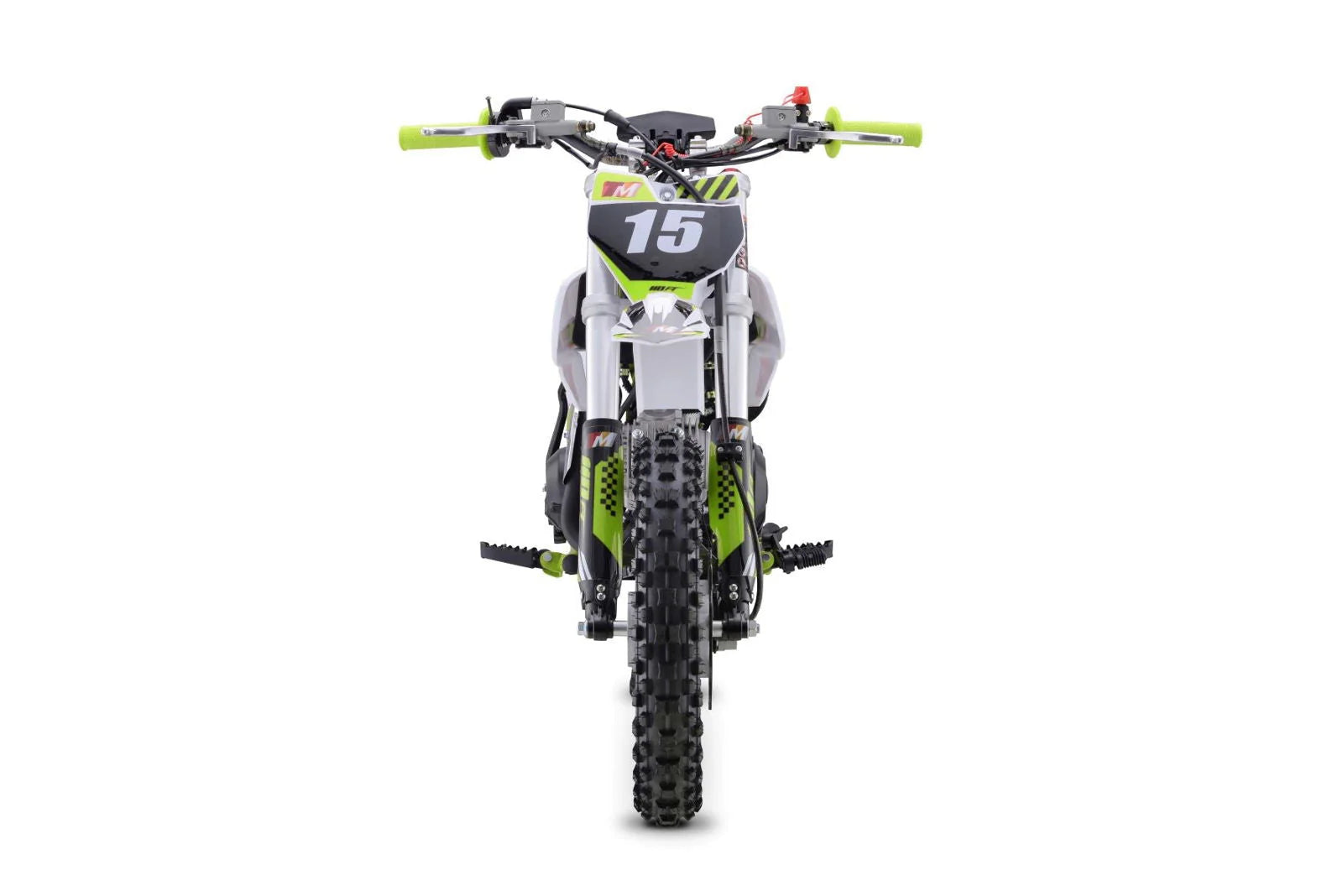

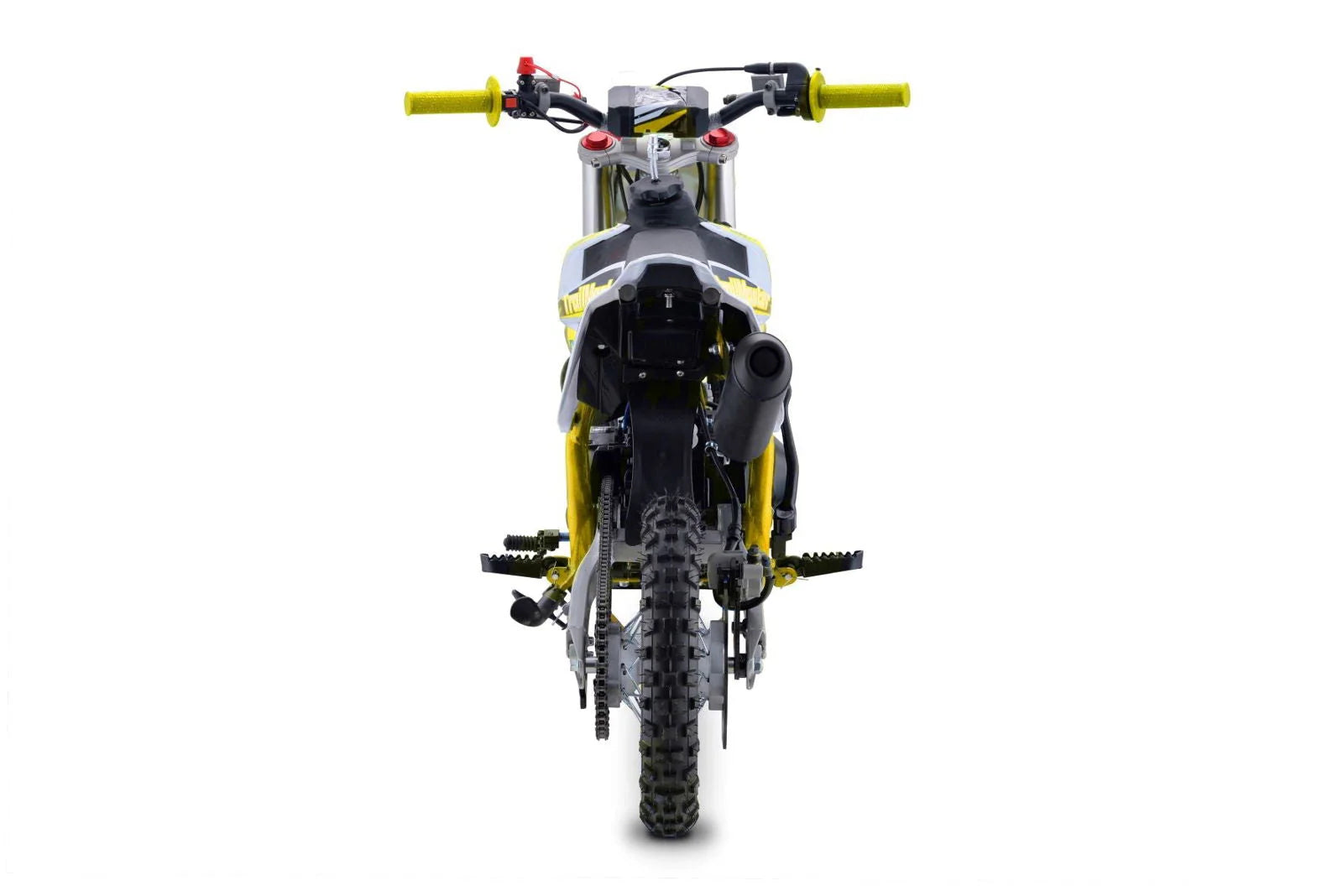

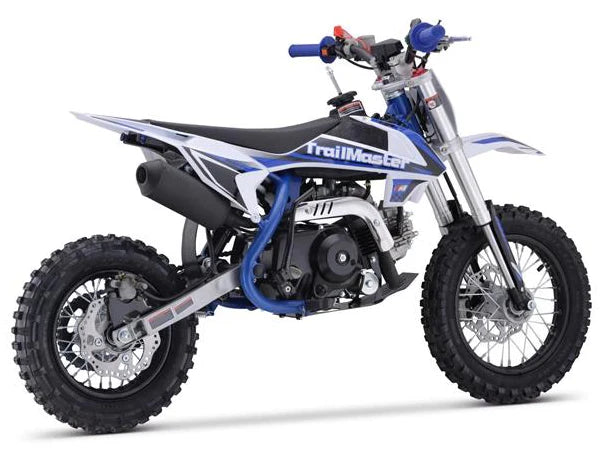

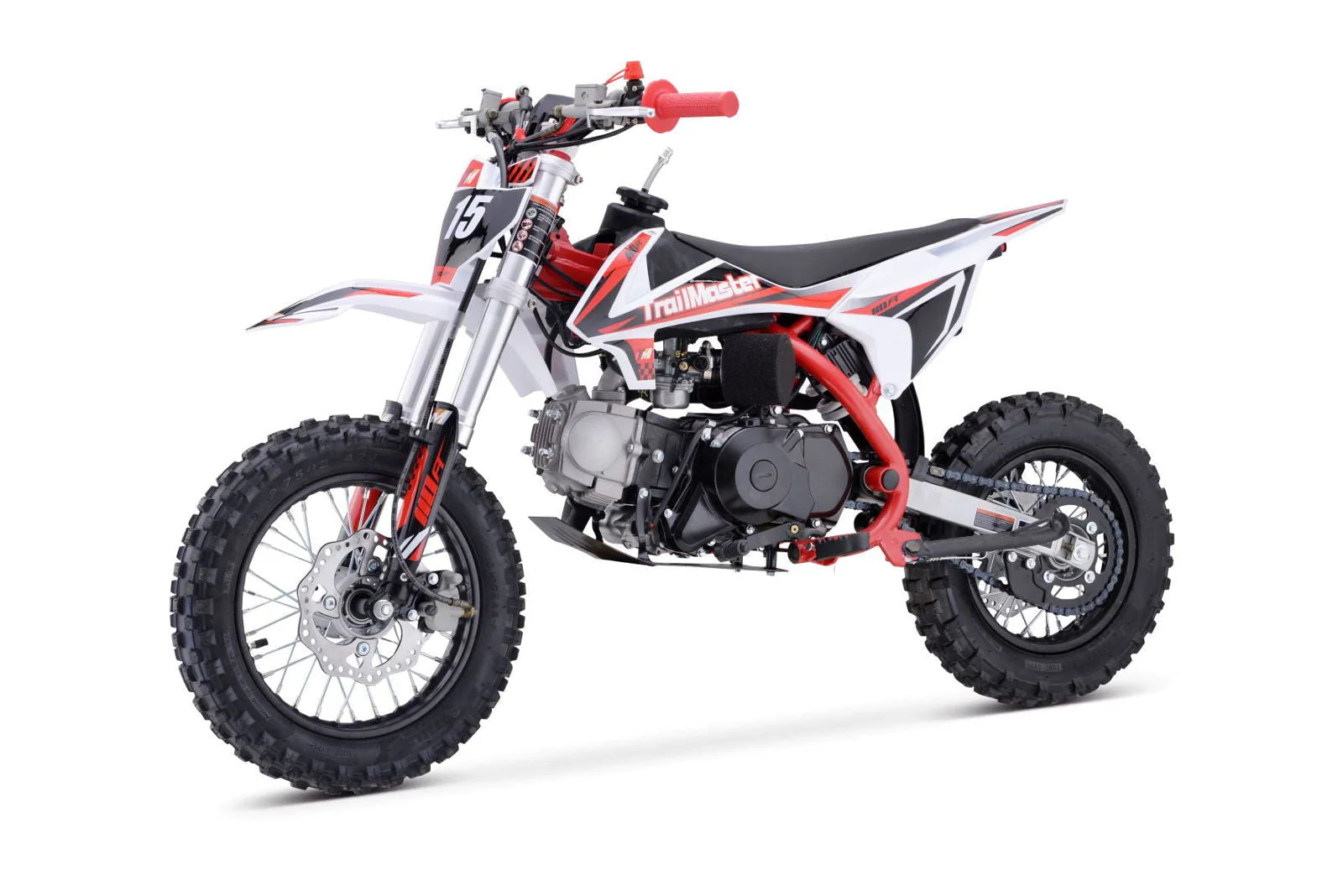

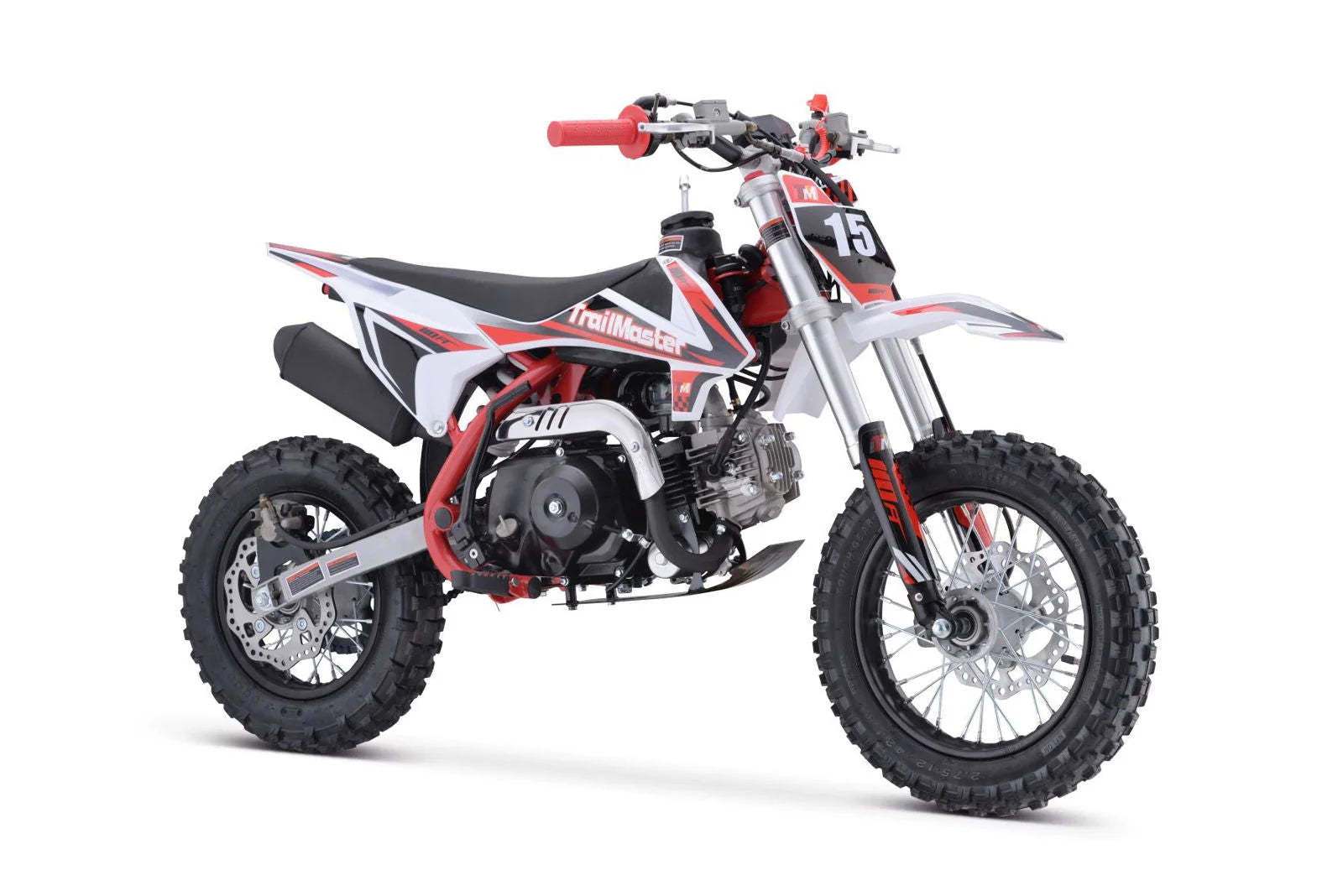

TrailMaster TM15 110cc Dirt Bike, 4-Speed Semi-Auto, Electric Start w/Kick backup, Dual Disc Brakes (12/10) Ages 8-12

     The TrailMaster TM15 is designed for young riders who are ready to advance their off-road skills. Powered by a reliable 110cc 4-stroke engine, the TM15 combines the convenience of electric start with the peace of mind of a kick-start backup. Its 4-speed semi-automatic transmission allows riders to learn shifting without the complexity of a manual clutch, making it an ideal transition bike for growing riders.

      Featuring larger 12-inch front and 10-inch rear wheels, increased ground clearance, hydraulic disc brakes, and rugged off-road suspension, the TM15 delivers improved stability, better obstacle clearance, and enhanced trail performance. Whether riding trails, tracks, or open fields, the TM15 offers the perfect balance of beginner-friendly operation and capable off-road performance.

Performance Specs:

• 110cc Single-Cylinder, 4-Stroke, Air-Cooled Engine
• 107cc Displacement
• 4-Speed Semi-Automatic Transmission
• Automatic Clutch
• Electric Start with Kick Start Backup
• CDI Ignition System
• #420 Heavy-Duty Chain Drive
• Maximum Power: 6.7 HP
• Maximum Torque: 7.5 N·m @ 5,500 RPM
• Compression Ratio: 9.0:1
• Bore x Stroke: 52.4 x 49.5 mm


Fuel System

• Fuel Capacity: 0.58 Gallons (2.2 Liters)
• EPA-Compliant Exhaust System
• Recommended Engine Oil: 5W-30

Suspension

• Front Hydraulic Telescopic Forks
• Rear Mono-Shock Suspension
• Designed for Trail Riding and Off-Road Terrain
• Durable Suspension Setup for Beginner and Intermediate Riders

Braking System

• Front Hydraulic Disc Brake
• Rear Hydraulic Disc Brake
• Dual Disc Brake Configuration
• Responsive Stopping Power for Improved Rider Safety

Wheels & Tires

• Front Tire: 2.75-12 Knobby Off-Road Tire
• Rear Tire: 3.00-10 Knobby Off-Road Tire
• 12-Inch Front Wheel
• 10-Inch Rear Wheel
• Aggressive Off-Road Tread Pattern
• Heavy-Duty Steel Wheels

Dimensions

• Overall Length: 62.2 Inches
• Overall Width: 28.0 Inches
• Overall Height: 37.0 Inches
• Wheelbase: 43.3 Inches
• Seat Height: 26.8 Inches
• Ground Clearance: 10.2 Inches

Frame & Construction

• Heavy-Duty Steel Tube Frame
• Reinforced Off-Road Chassis
• Durable Steel Swingarm
• Built for Trail, Track, and Recreational Riding

Weight

• Net Weight: 127lbs
• Gross Shipping Weight: 145lbs

Additional Features

• Electric Start with Kick Start Backup
• 4-Speed Semi-Automatic Transmission
• No Manual Clutch Required
• Hydraulic Front & Rear Disc Brakes
• Larger 12"/10" Wheel Combination for Enhanced Stability
• Increased Ground Clearance for Trail Riding
• Available in Blue, Red, Green, and Orange
• Recommended Rider Age: 8-13 Years

What's Included

✔ TrailMaster TM15 Dirt Bike
✔ Battery for Electric Start
✔ Kick Start Backup System
✔ Tool Kit
✔ Owner's Manual
✔ Assembly Hardware & Instructions
