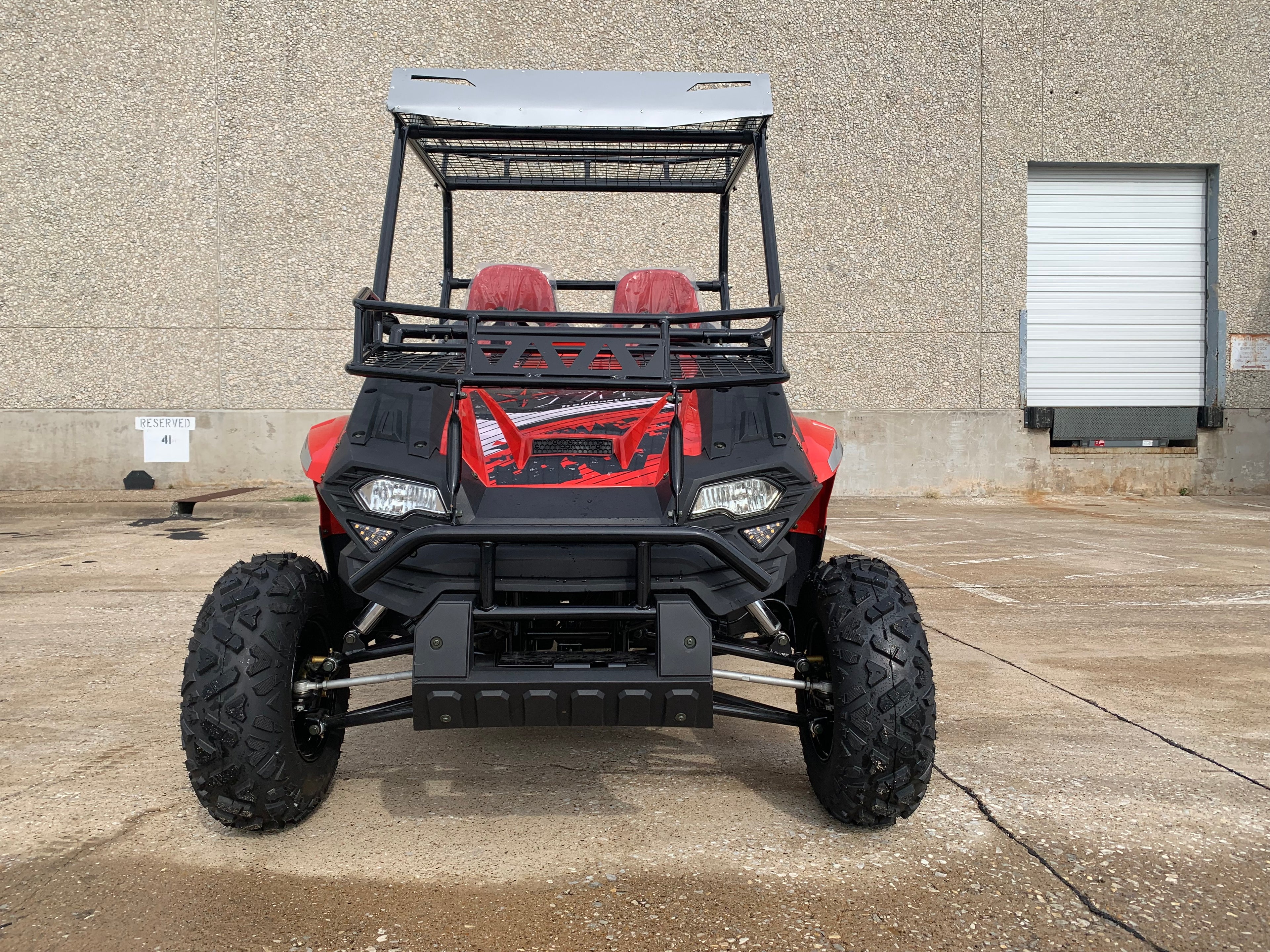

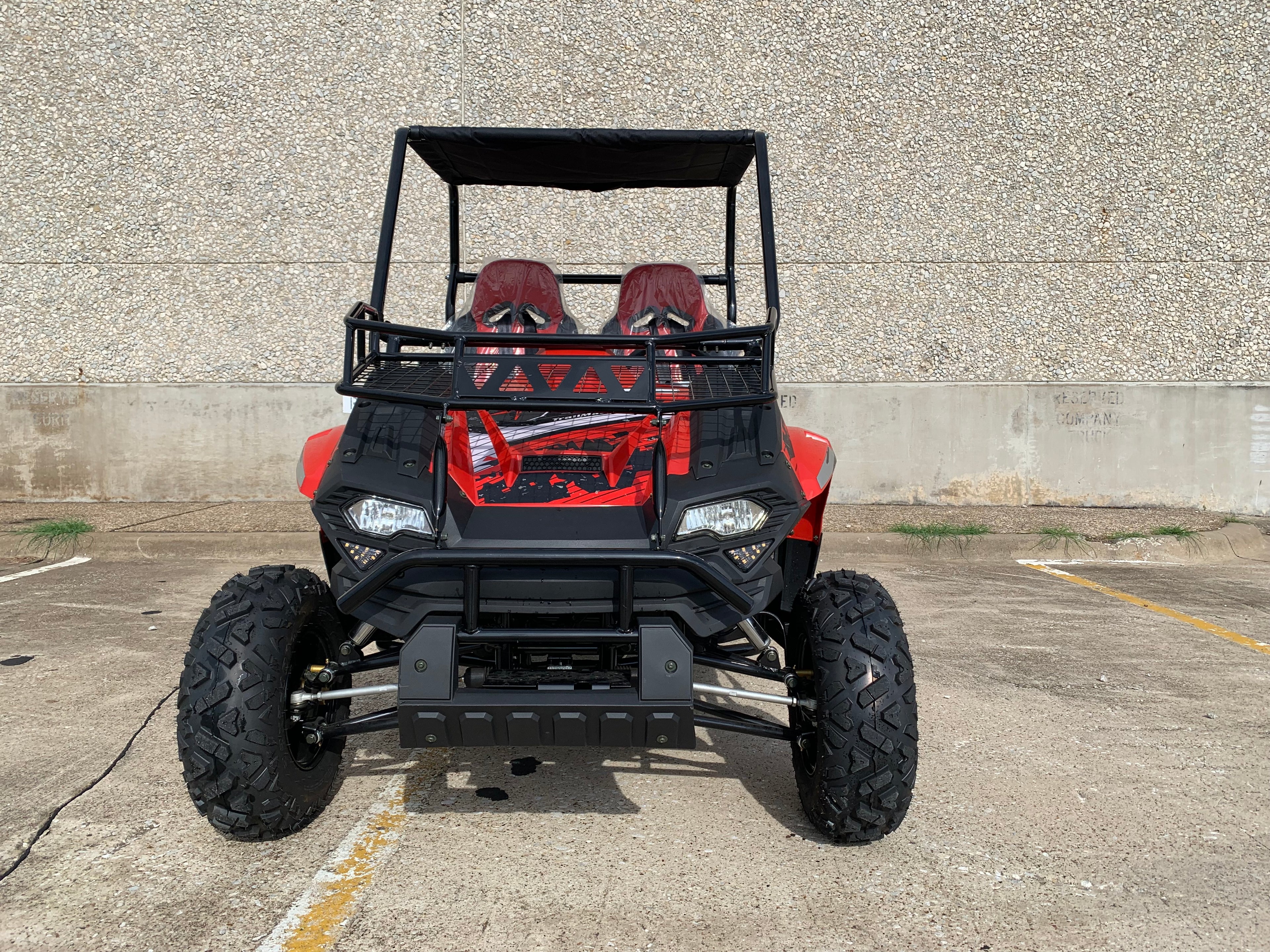

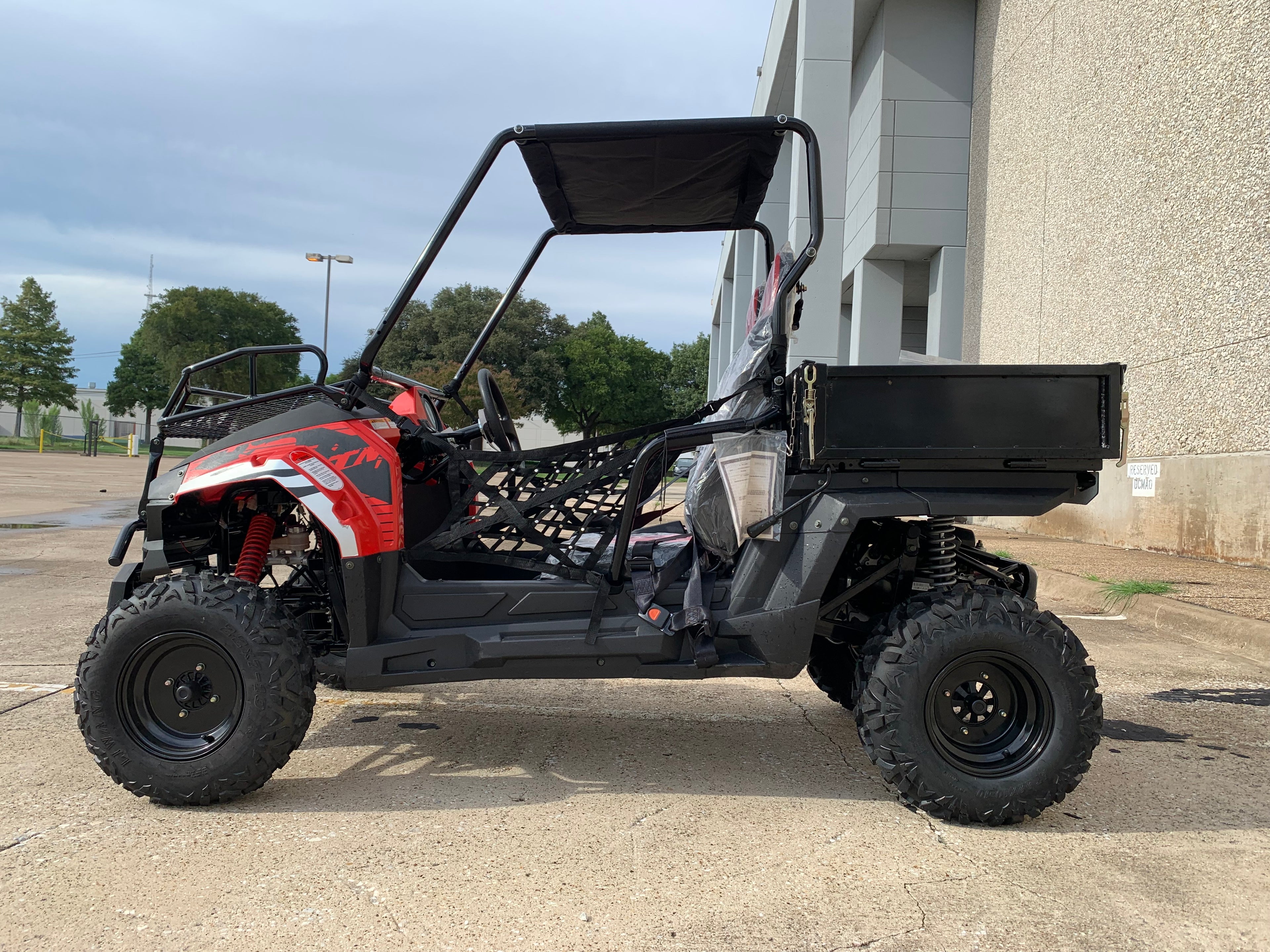

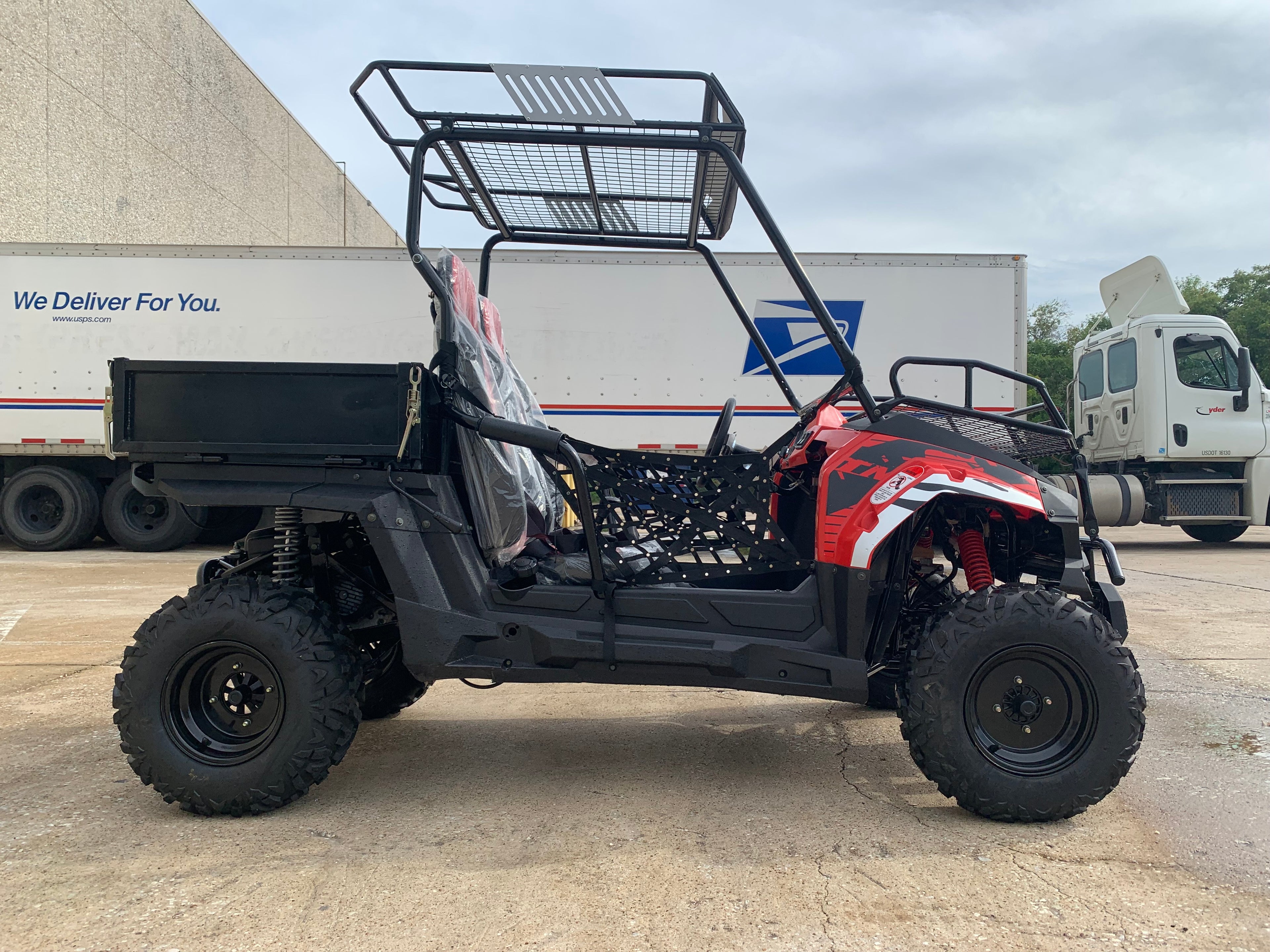

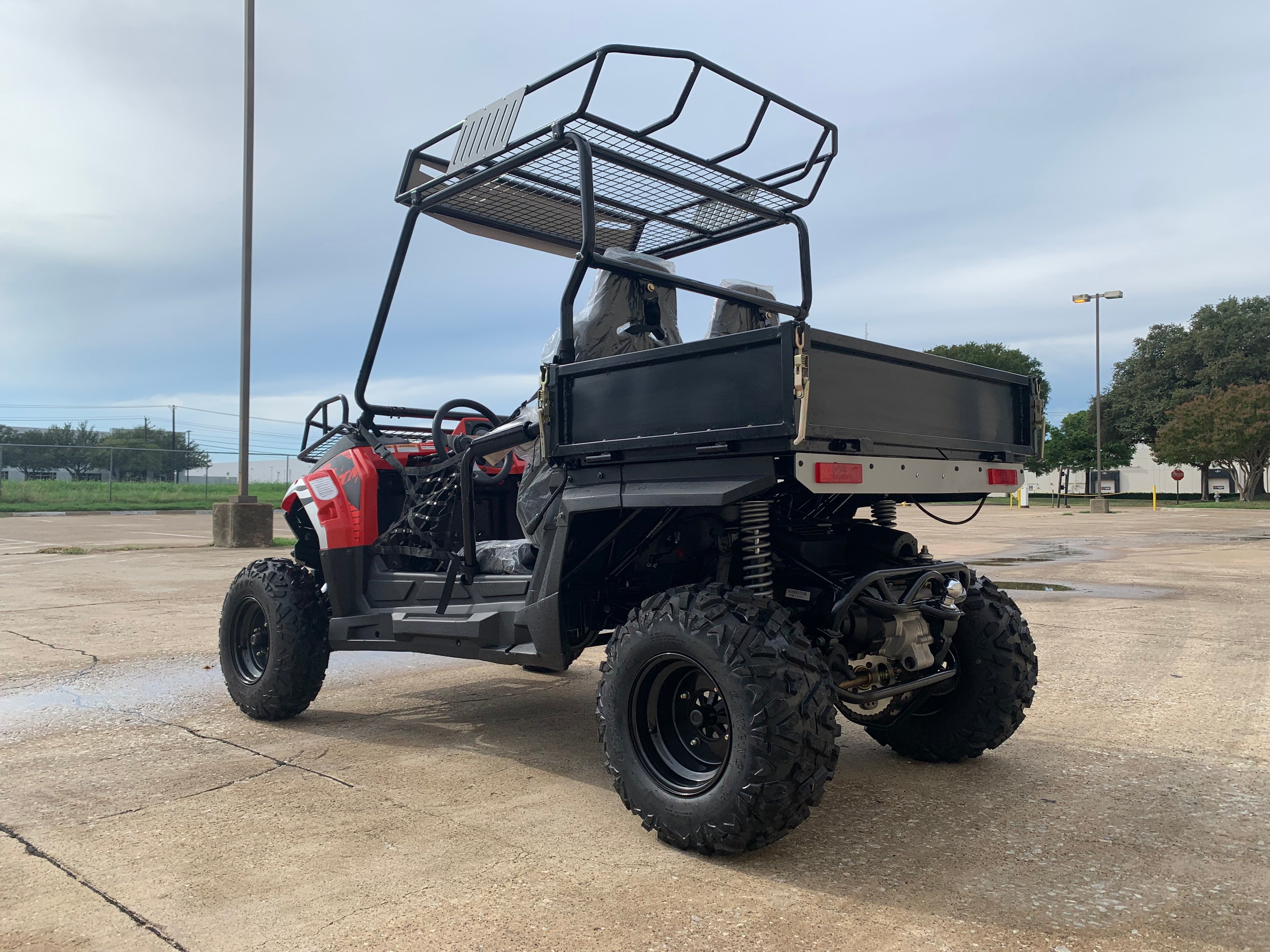

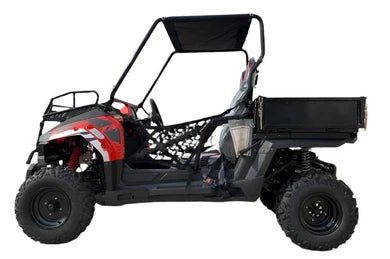

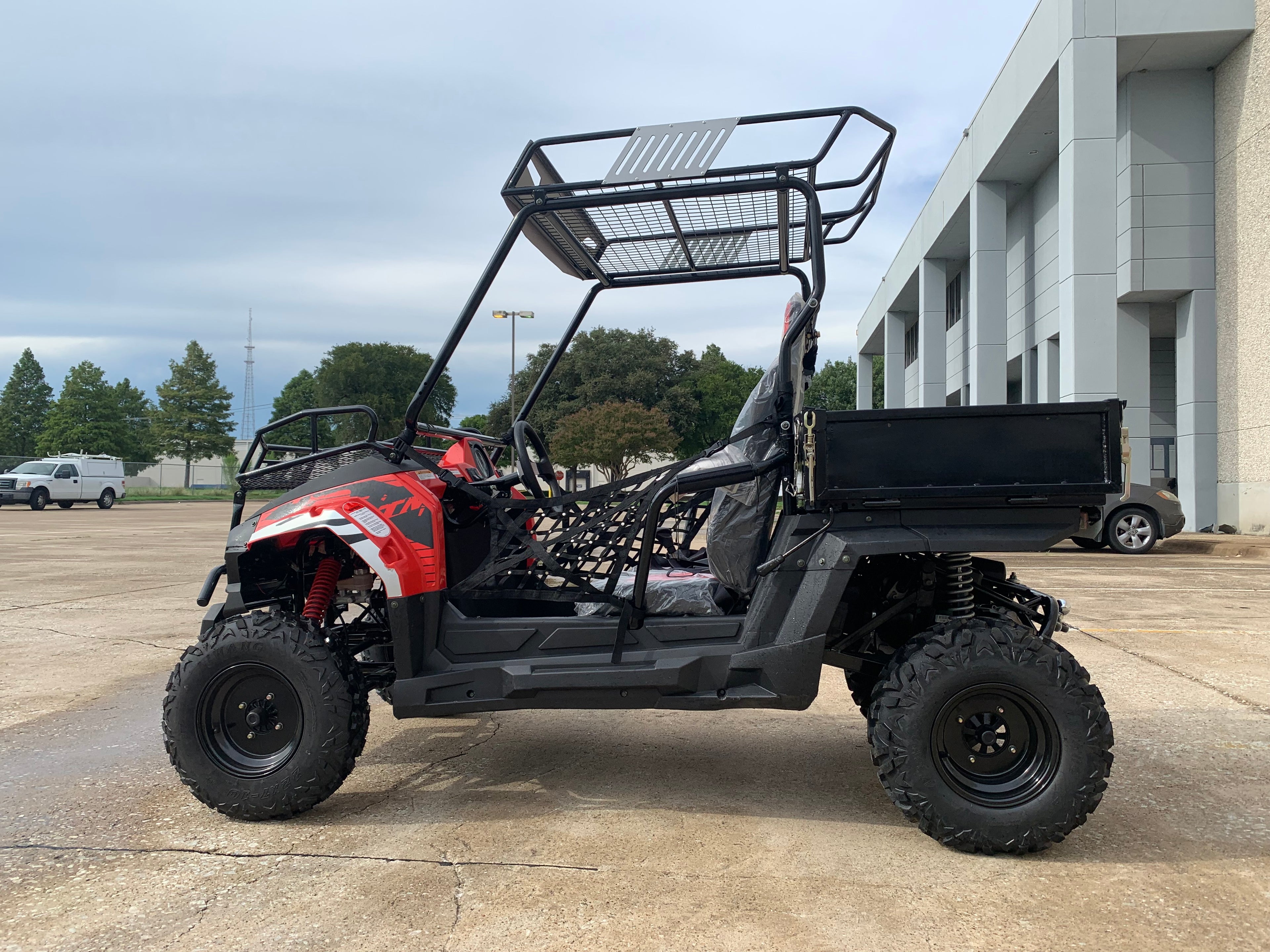

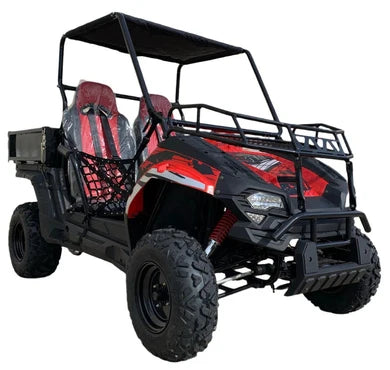

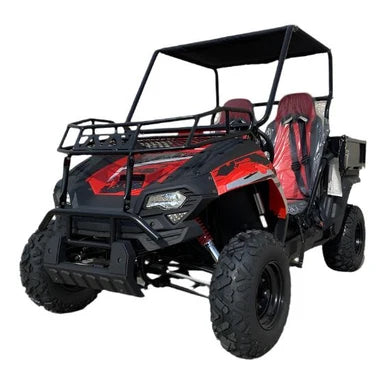

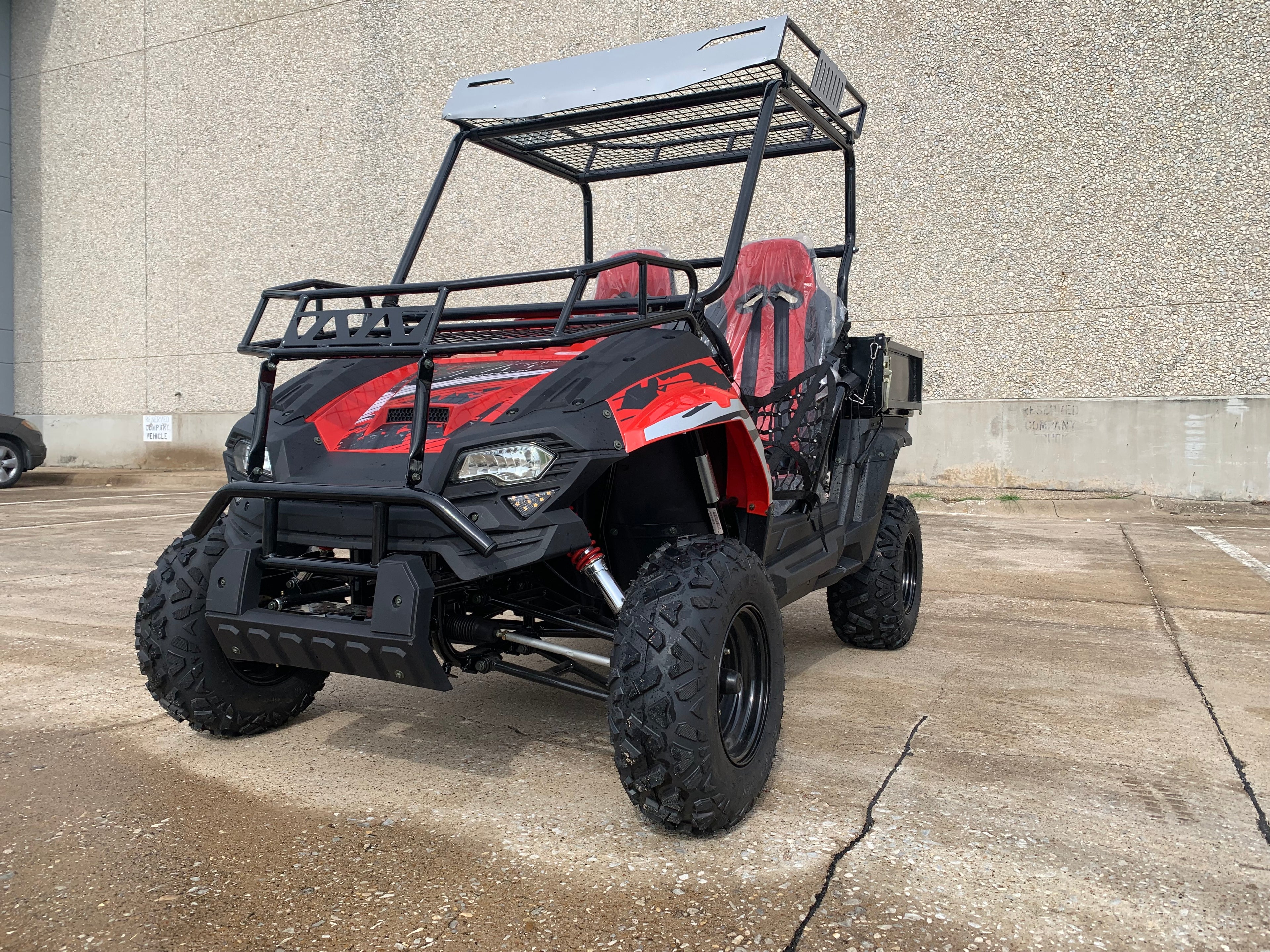

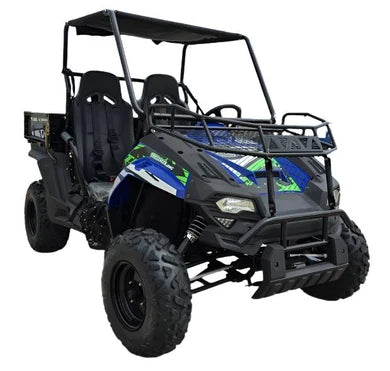

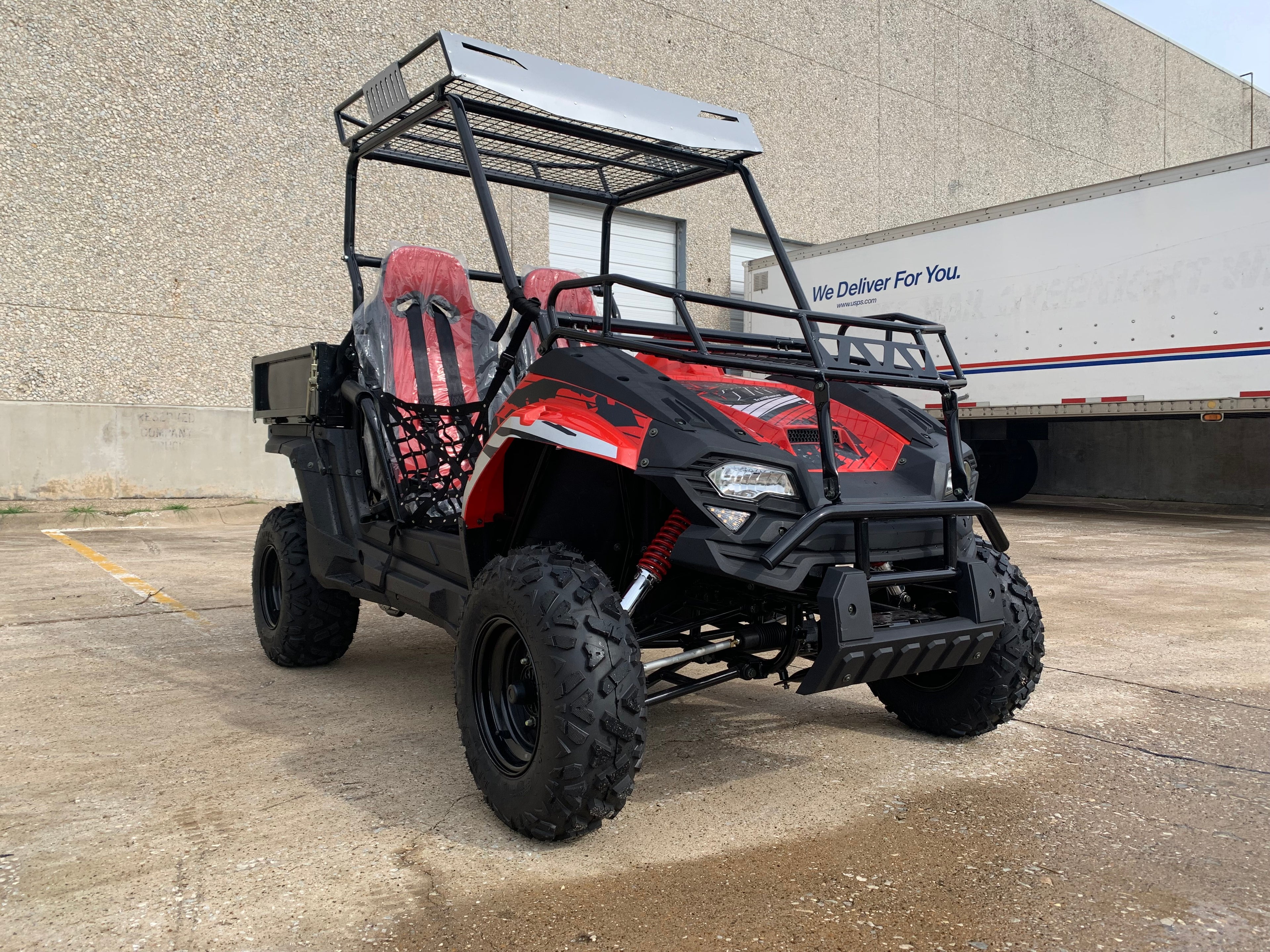

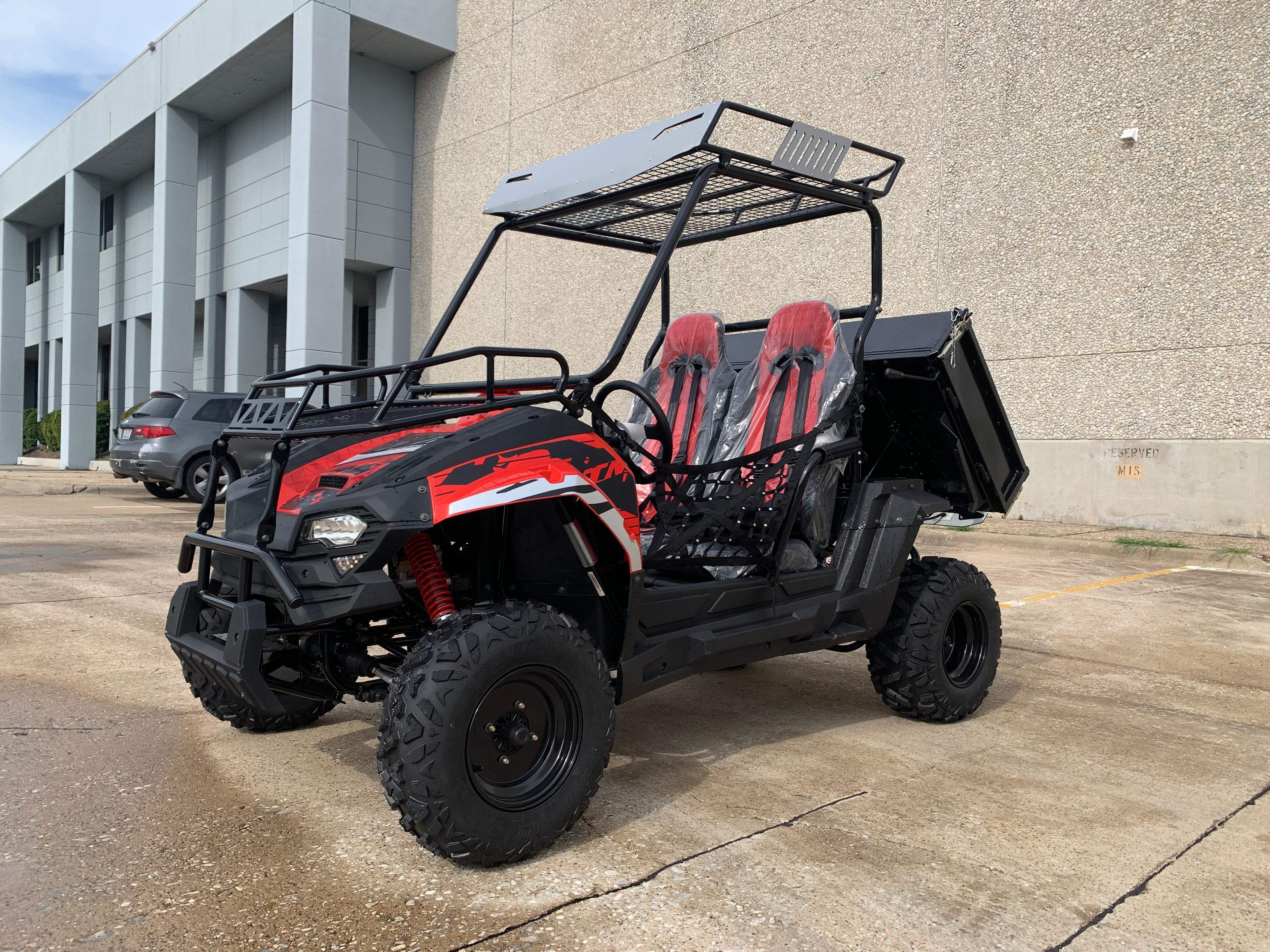

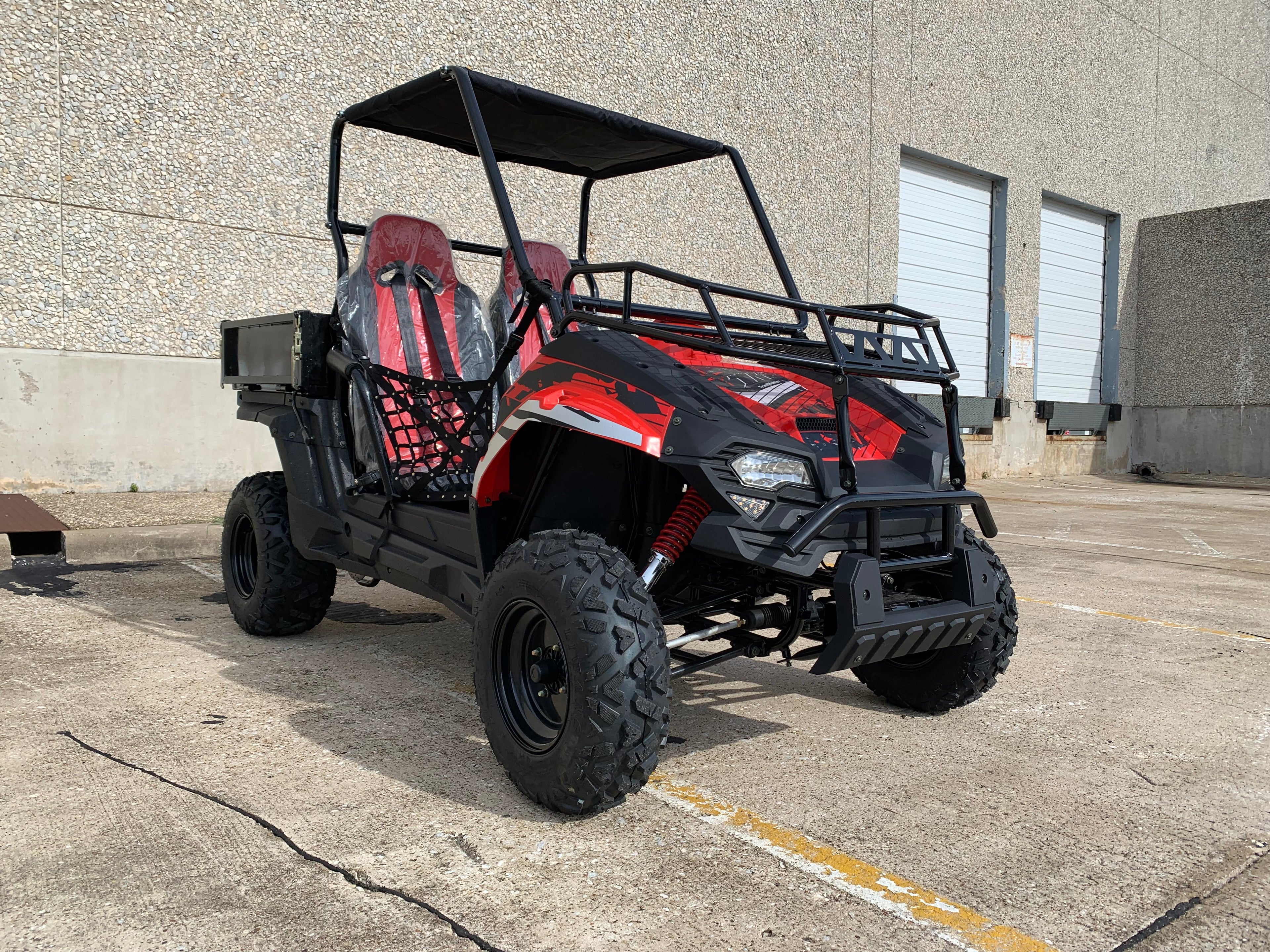

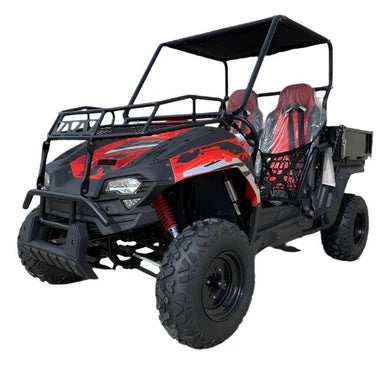

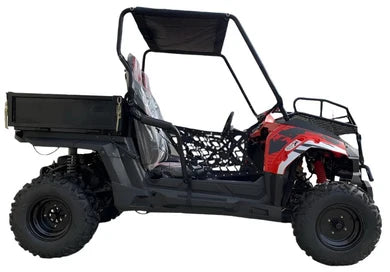

TrailMaster Challenger 200U UTV Side-by-Side, Front Cargo Rack, Rear Dump Bed
TrailMaster Challenger 200U Utility UTV – 169cc Automatic with Reverse
The TrailMaster Challenger 200U combines the comfort of a side-by-side with the practicality of a utility vehicle. Powered by a reliable 169cc GY6 4-stroke engine, this UTV features a fully automatic CVT transmission with reverse, excellent low-end torque, and a top speed of up to 33 MPH.

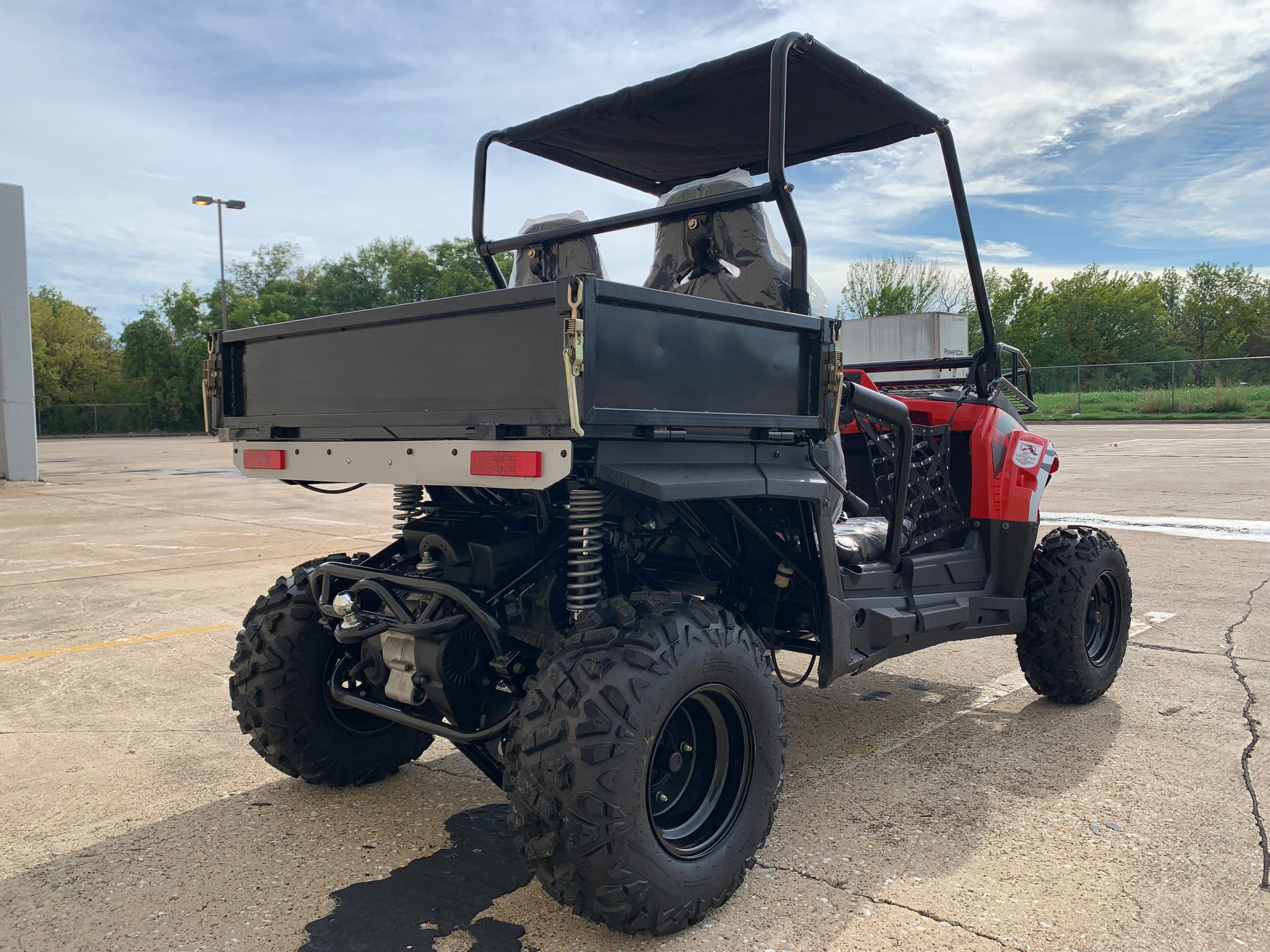

Designed for work and recreation, the Challenger 200U features a large rear dump bed with a 165 lb capacity and a 32° dump angle, making it ideal for hauling tools, firewood, feed, or other cargo. Independent front suspension, hydraulic disc brakes, and a spacious cabin provide a comfortable ride over rough terrain, while premium features like a windshield, cargo racks, LED headlights, and a trailer hitch make this utility UTV ready for any job.
Key Features:
- 169cc GY6 4-Stroke Air-Cooled Engine
- Fully Automatic CVT Transmission with Reverse
- Electric Start
- Top Speed: Up to 33 MPH

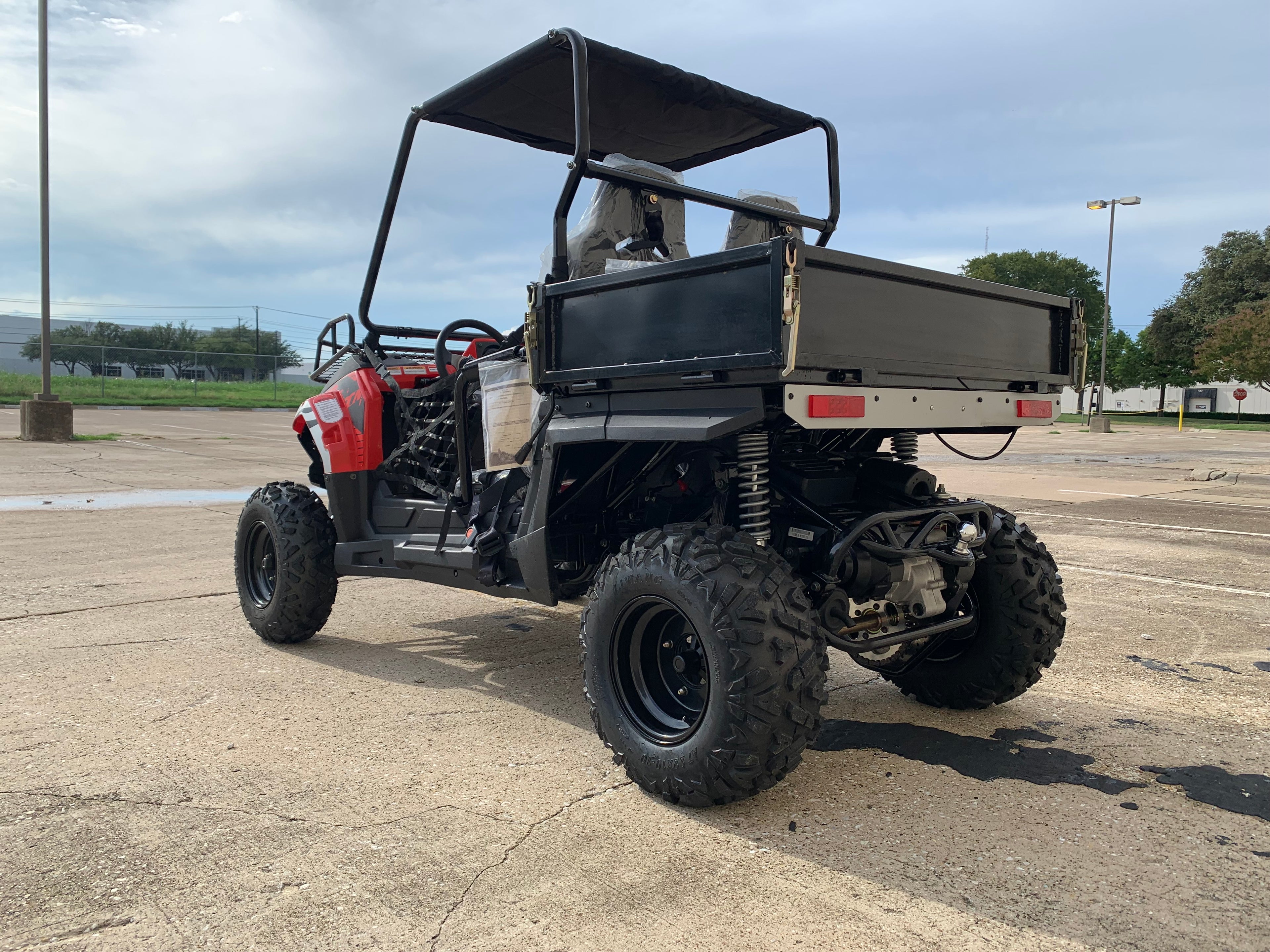

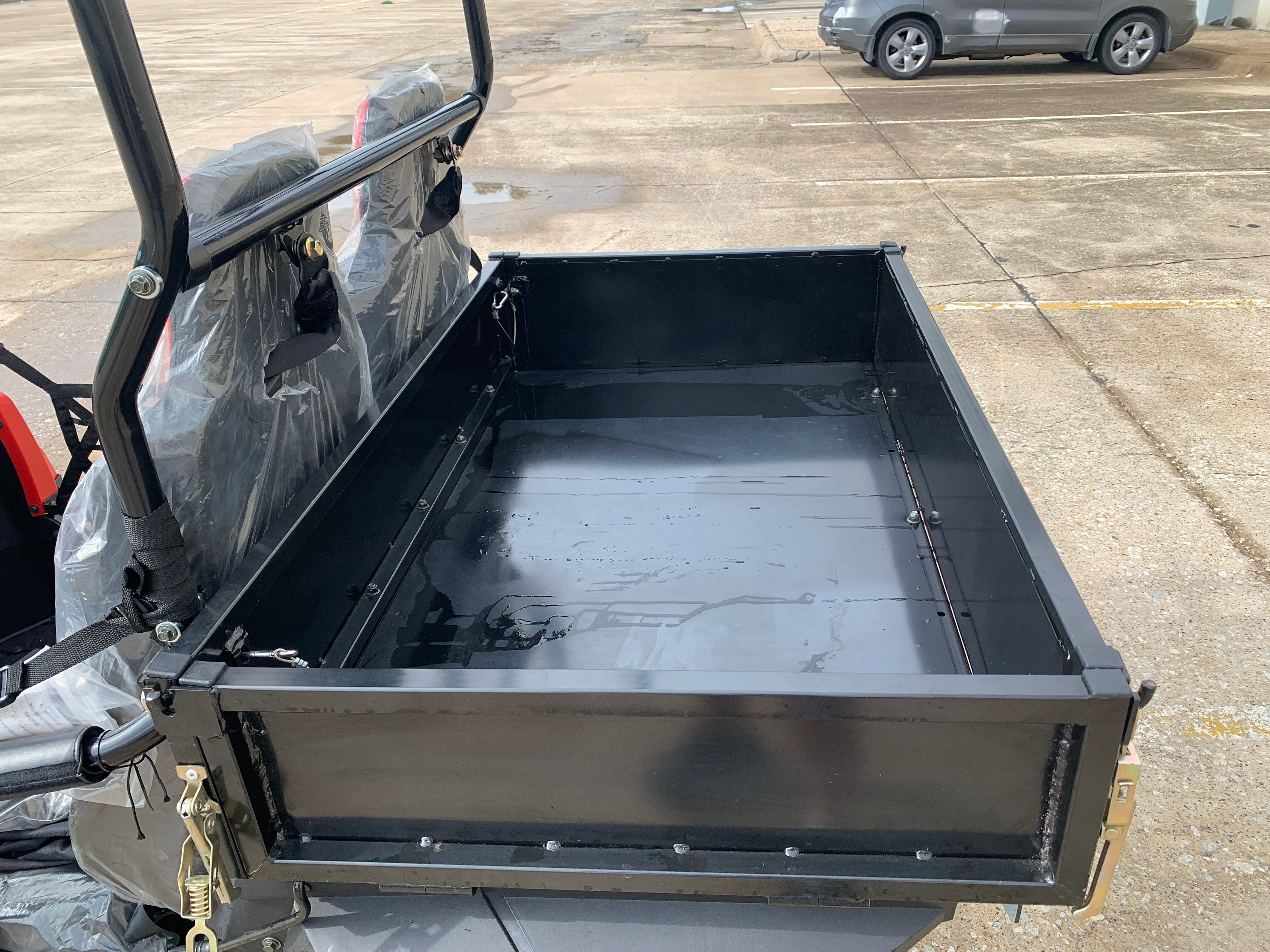

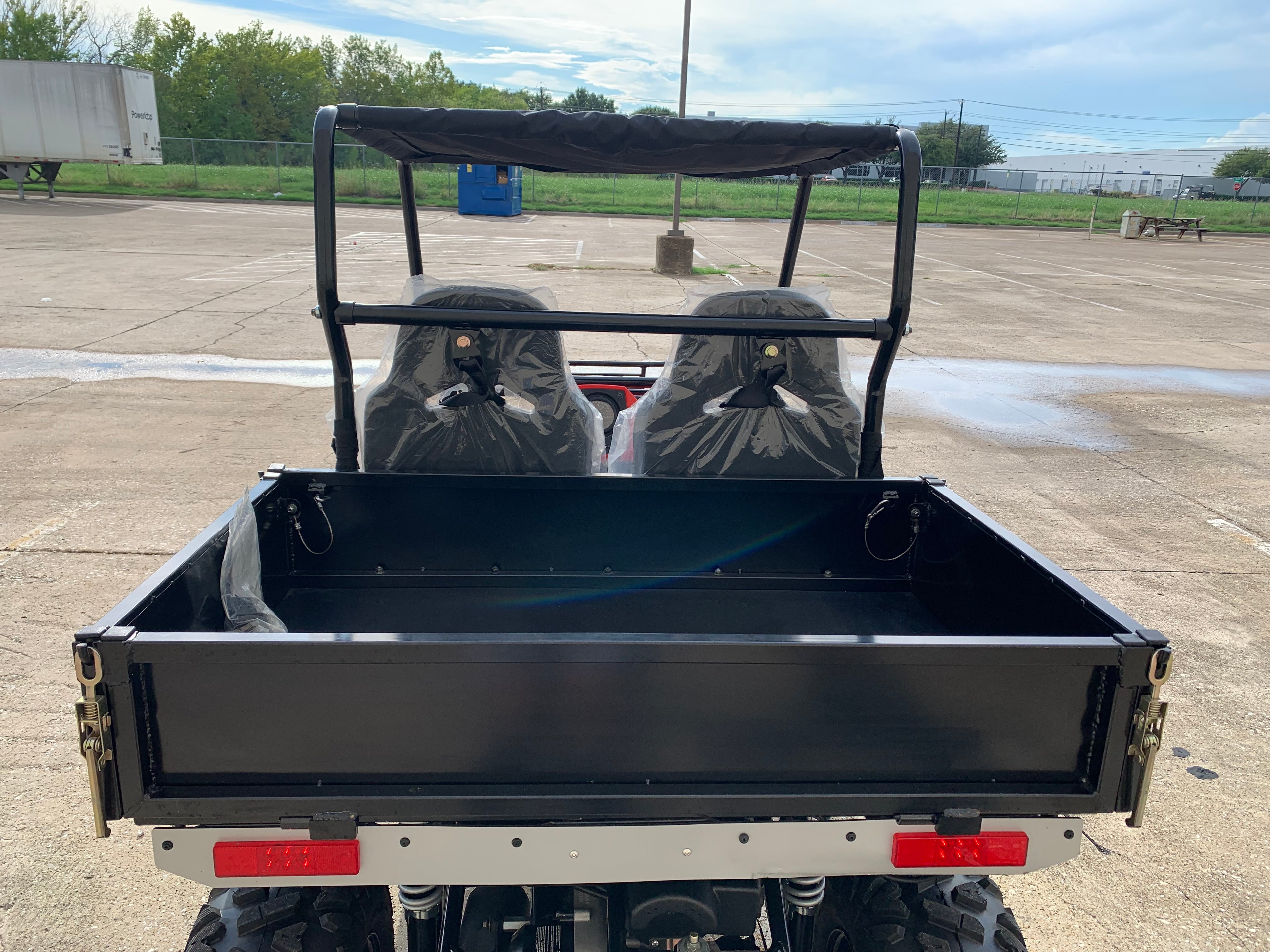

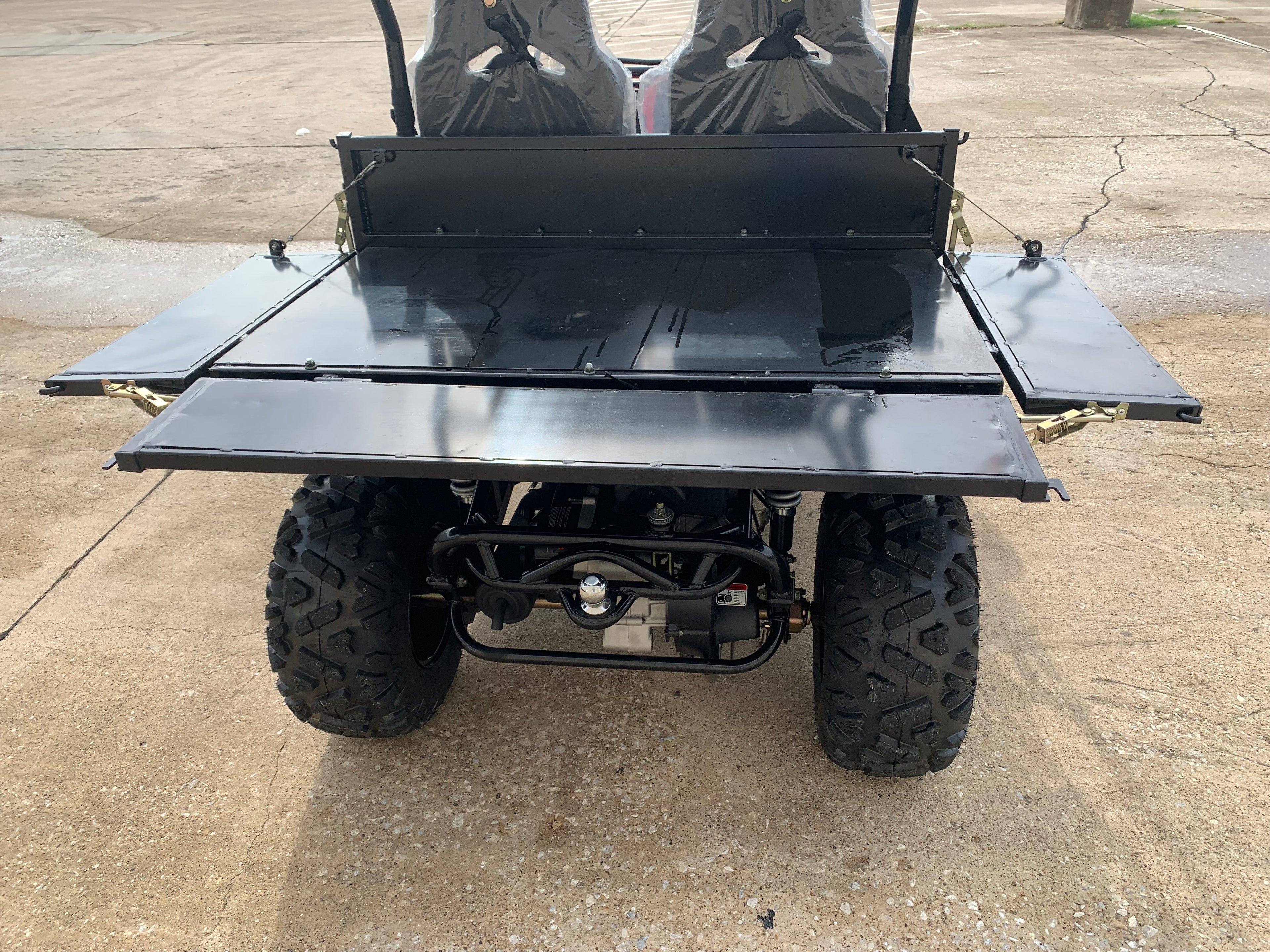

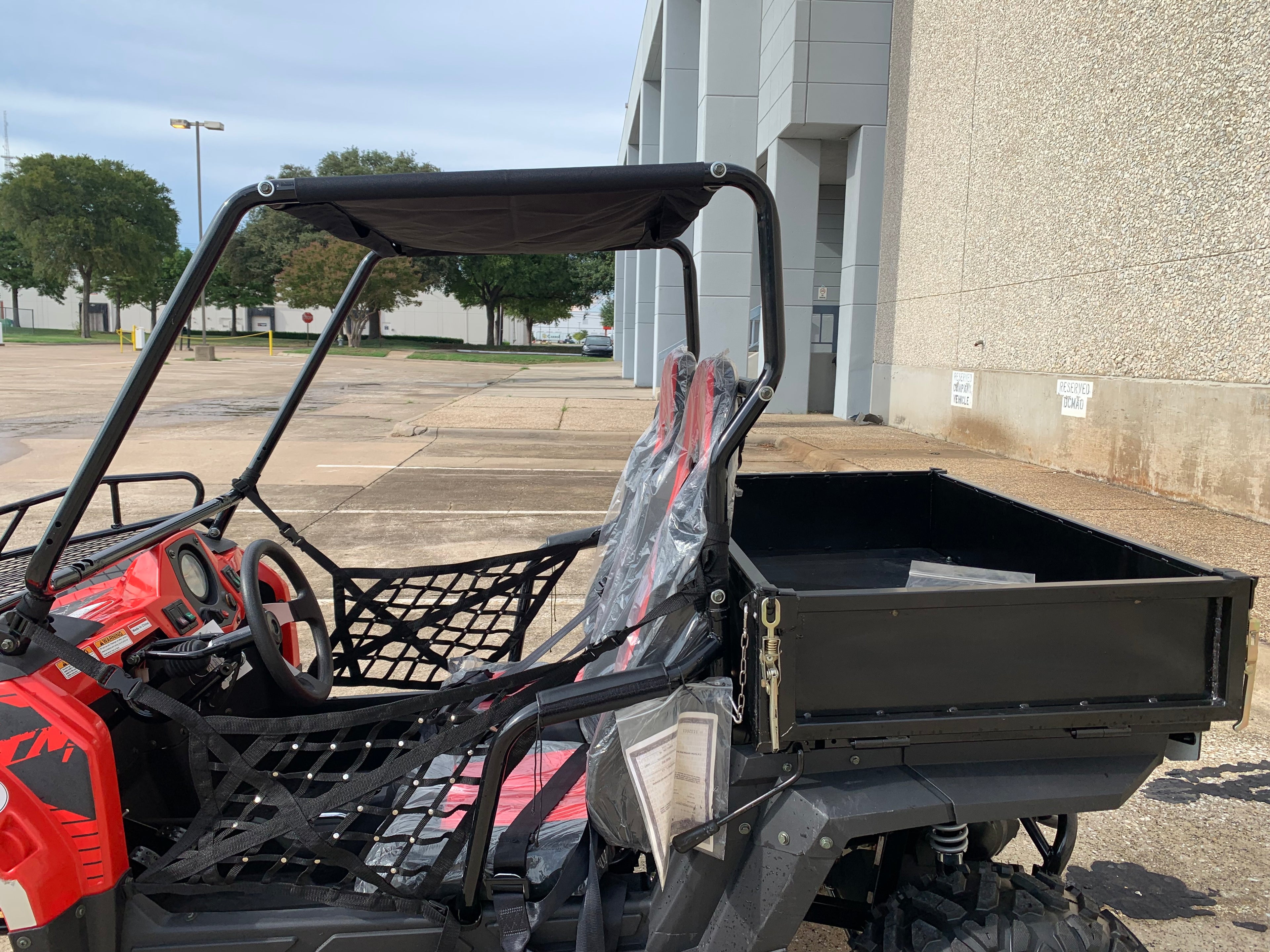

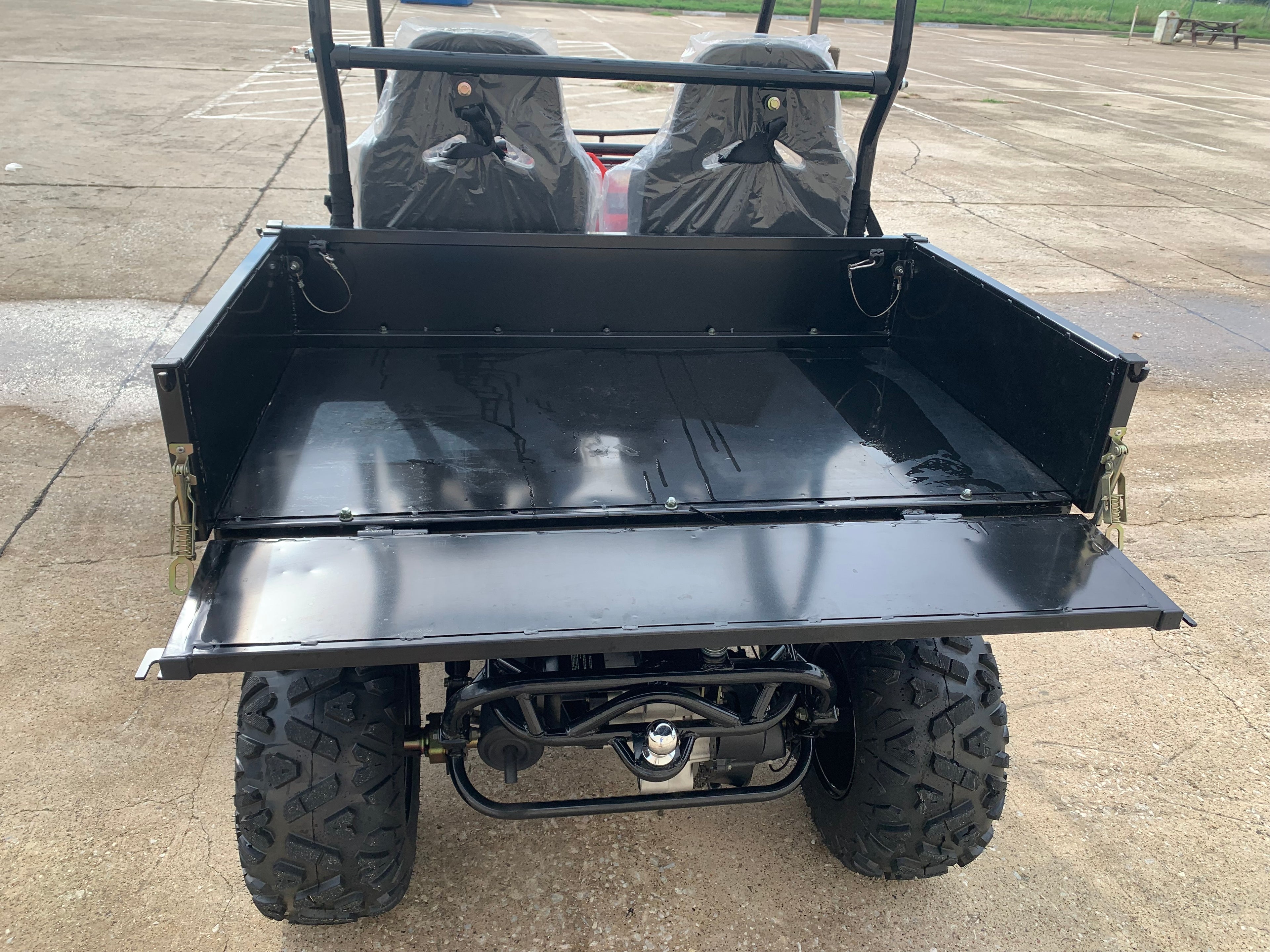

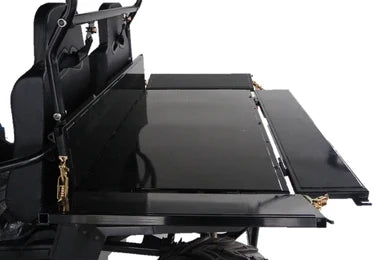

- Large Rear Dump Bed (165 lb Capacity)

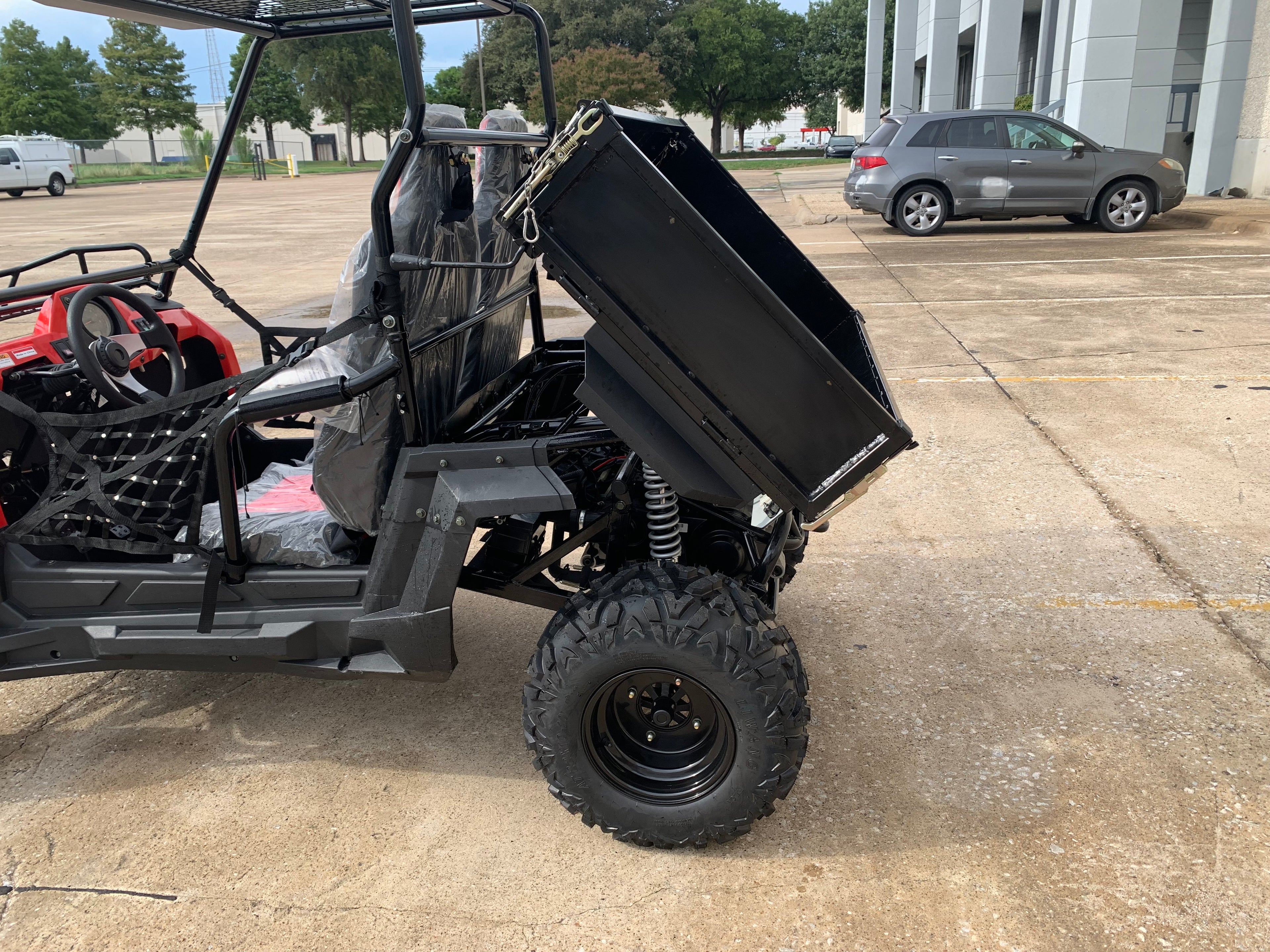

- 32° Dump Bed Tilt

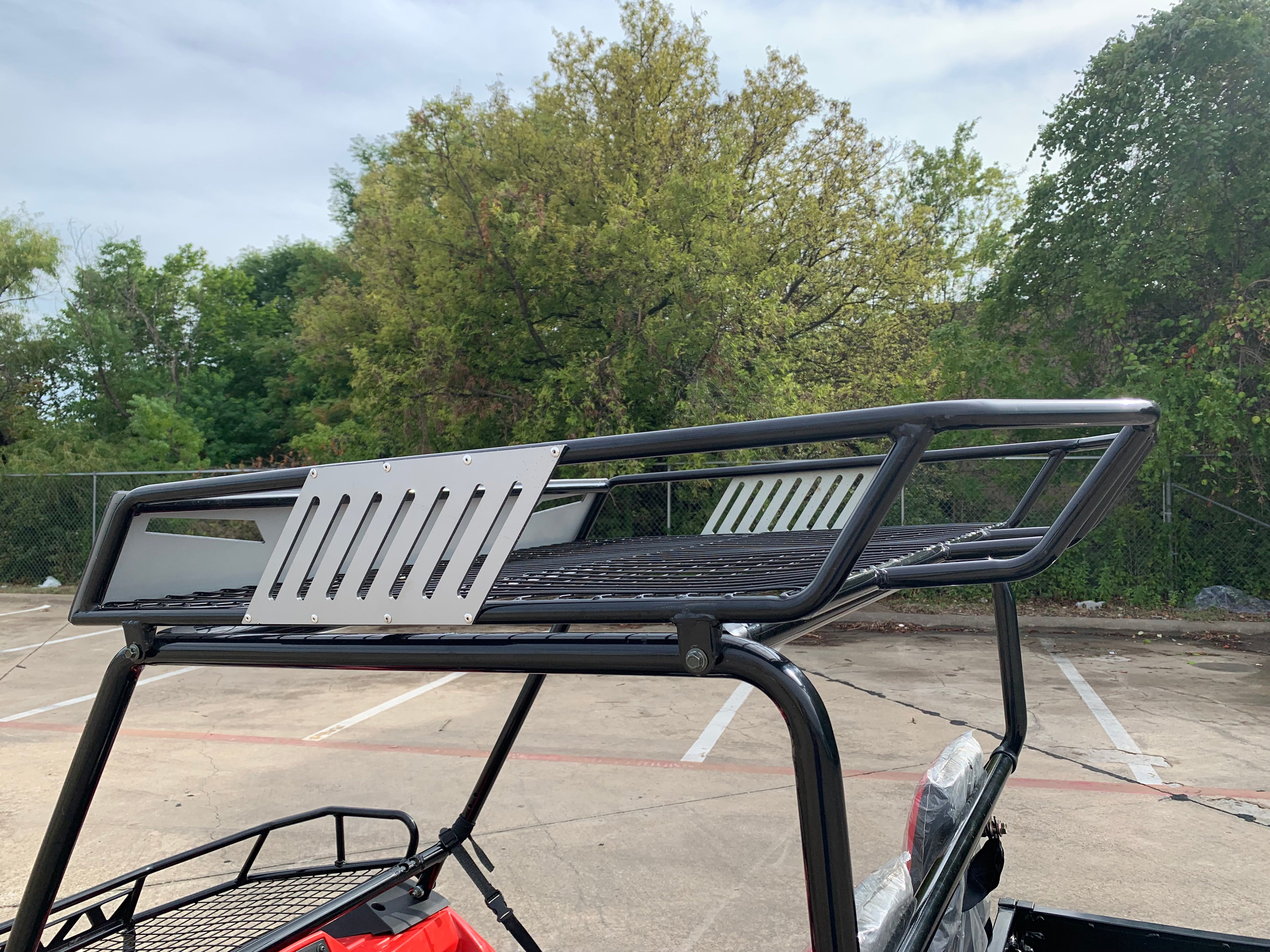

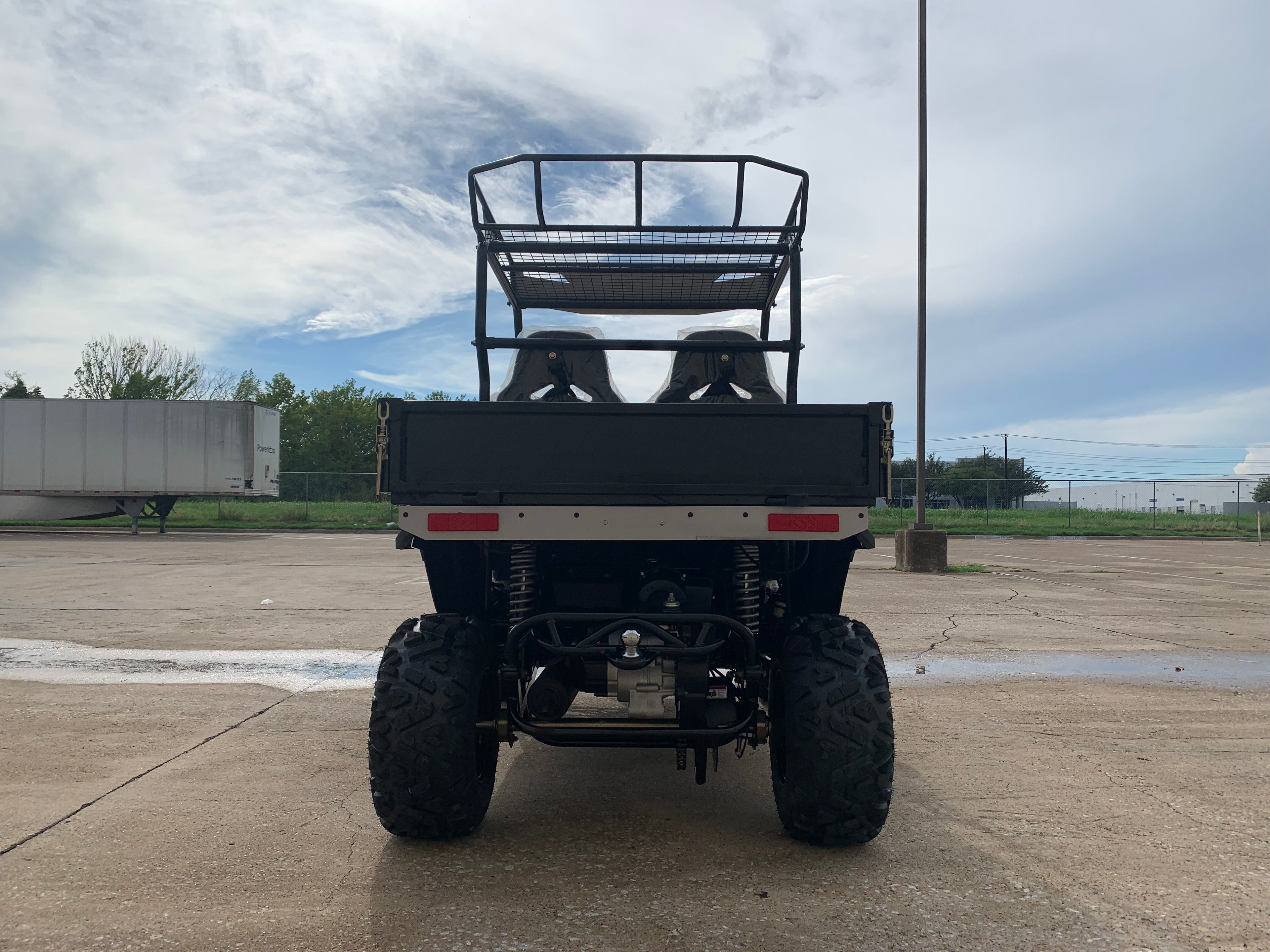

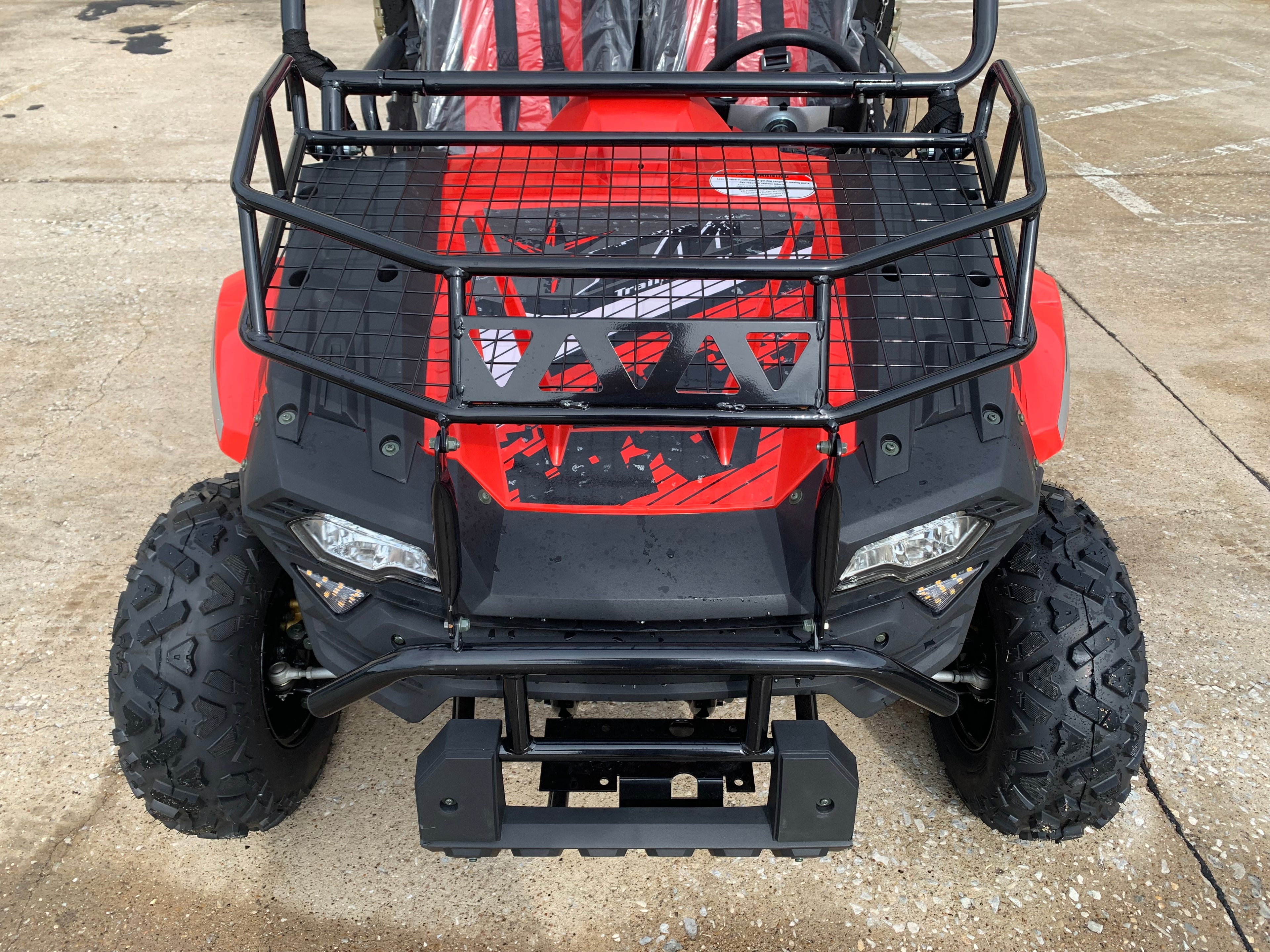

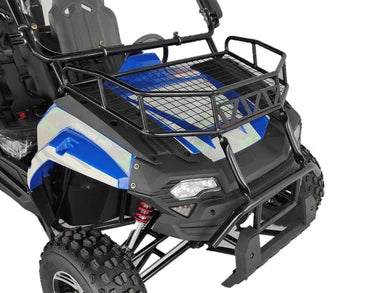

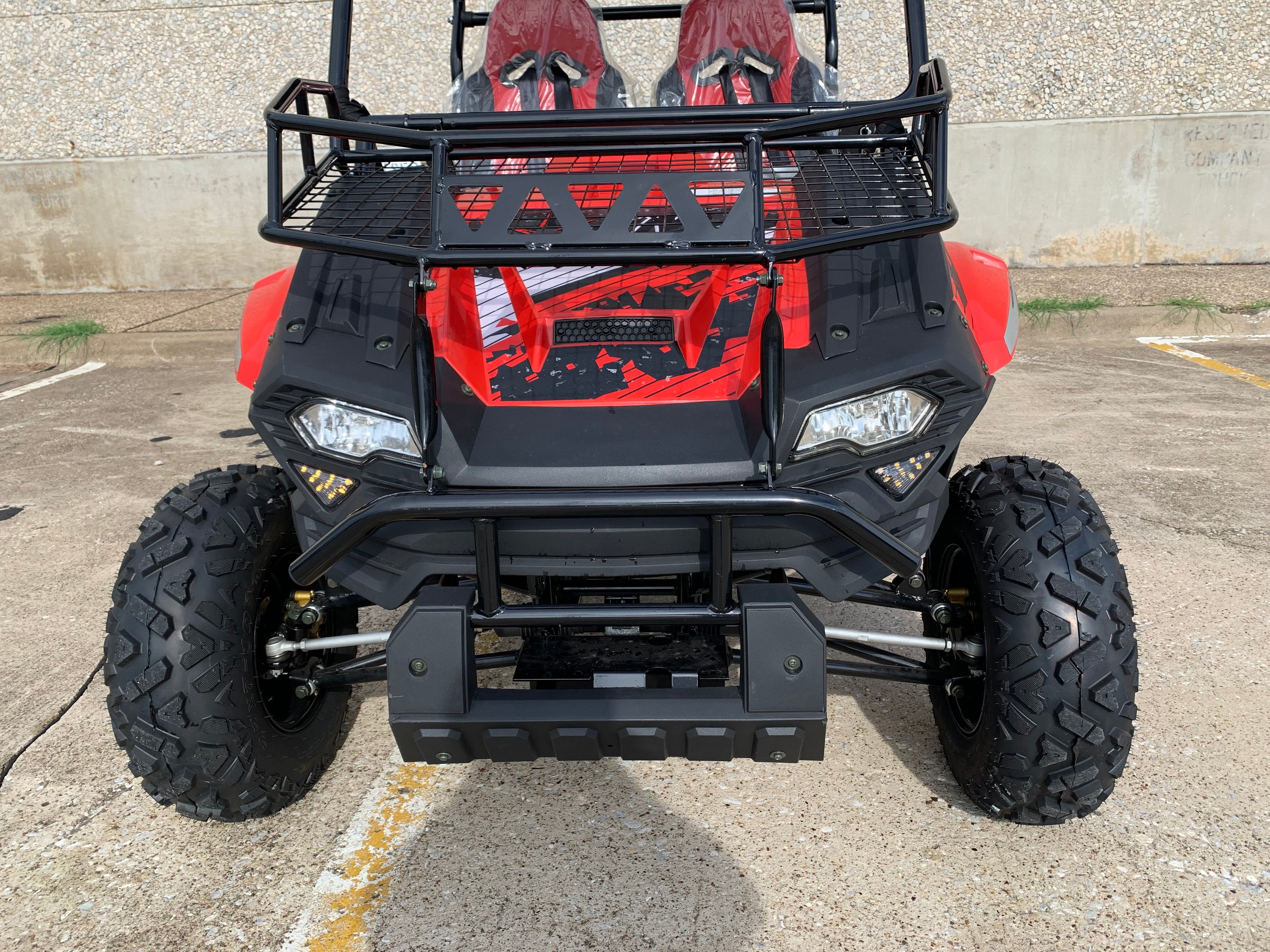

- Front & Rear Cargo Racks
- Full Windshield
- Side Mirrors
- Front Steel & Plastic Bumper
- Independent Dual A-Arm Front Suspension
- Adjustable Steering Wheel
- Rack & Pinion Steering
- Front & Rear Hydraulic Disc Brakes
- Dual Bucket Seats
- 4-Point Safety Harnesses
- LED Headlights

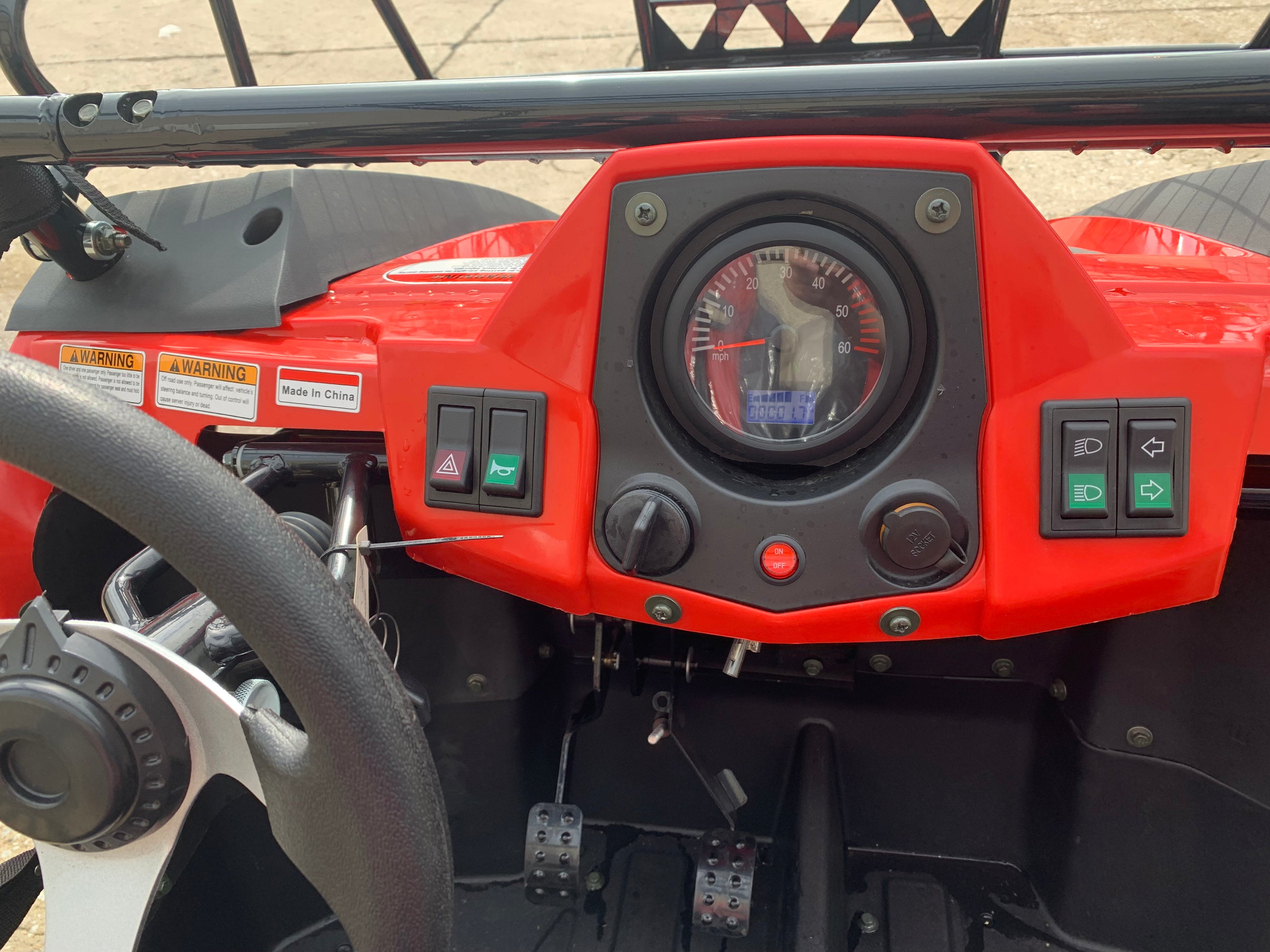

- Digital Speedometer & Odometer
- Turn Signals
- Horn
- 12V Power Outlet
- Bikini Sunshade Top
- Trailer Hitch
- Parking Brake
- Optional Winch Compatible
Specifications:
|
Specification |
Details |
|
Engine |
169cc, 4-Stroke, Single Cylinder, Air-Cooled |
|
Horsepower |
11.1 HP @ 7,500 RPM |
|
Torque |
11 N·m @ 5,000 RPM |
|
Top Speed |
Up to 33 MPH |
|
Climbing Ability |
20–25° |
|
Transmission |
Automatic CVT with Reverse |
|
Starting System |
Electric Start |
|
Ignition |
CDI |
|
Battery |
12V 10Ah |
|
Drive System |
Chain Drive / Dual Wheel Drive |
|
Front Suspension |
Independent Dual A-Arm |
|
Rear Suspension |
Double Oil-Damped Shock |
|
Brakes |
Front & Rear Hydraulic Disc |
|
Front Tires |
22x7-10 |
|
Rear Tires |
22x10-10 |
|
Fuel Capacity |
2 Gallons |
|
Maximum Payload |
500 lbs |
|
Dump Bed Capacity |
165 lbs |
|
Dump Bed Dimensions |
27.5” × 45.3” × 93.5” |
|
Adjustable Driver Seat |
28.5”–34.5” (Pedal to Seat Back) |
|
Dry Weight |
705 lbs |
|
Shipping Weight |
840 lbs |
|
Wheelbase |
72 in. |
|
Seat Height |
23.6 in. |
|
Ground Clearance |
6.3 in. |
|
Overall Dimensions |
100” × 53” × 63” |
|
Crate Dimensions |
91” × 54” × 35” |
|
Recommended Age |
16+ |
|
Maximum Rider Height |
Up to 6’2” |
